- Product

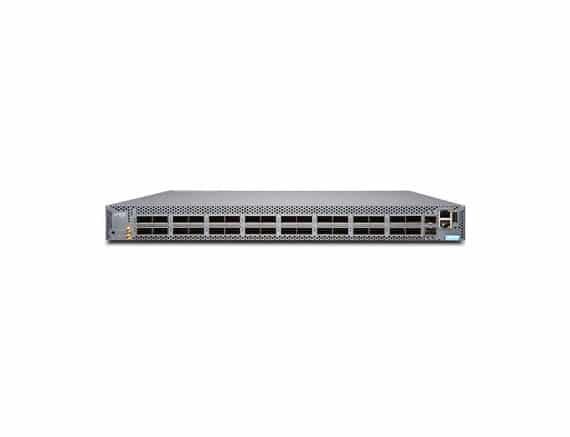

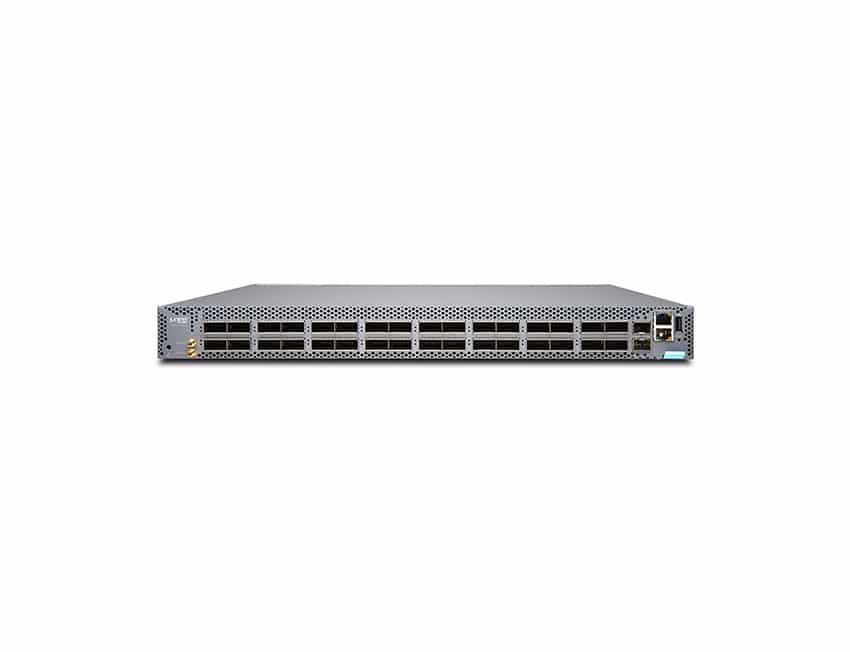

- Juniper QFX5130-32CD
- Features
- control flux, support VPN, support de BOOTP, support de RARP, support of ARP, liaisons, support network local (LAN) virtuel, IGMP snooping, Denial of Service attack protection, stockage and retransmission, filtrage per adresse MAC, support of IPv6, haute availability, support protocole SNTP, Low-latency queuing (LLQ), Weighted Random Early detection (WRED), sFlow, support protocole STP (Spanning Tree Protocol), support protocole RSTP (Rapid Spanning Tree Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), tunnellisation, support DCBX (Data Center Bridging Exchange), DHCP snooping, assistance Trivial File Transfer Protocol (TFTP), assistance accesss Control List (ACL), Quality of Service (QDS), serveur DHCP, Dynamic ARP Inspection (DAI), Redundant trunk group (RTG), Non-Stop Bridging (NSB), Routing continu, Graceful Route Engine Switchover (GRES), support IPv4, relais DHCP, Data Center Bridging (DCB), based d'information de management (MIB), Strict Priority Queuing (SPQ), VLAN Spanning Tree Protocol (VSTP), prevention boucles, fans redondants replaceables hot, transfert FCoE, Class of Service (CoS)
- performance
- - Switching capacity: 12.8Tbps
- Forwarding capacity : 5,68 billion packets per second
- Capacity
- - Buffer capacity : 132 MB
- Adresses MAC: 160000
- Routes unicast / multicast IPv4 1.24 M *
- Routes unicast / multicast IPv6: 610000
- Number of VLAN :4091
- Entries ARP: 32000
- Latency : 630ns
- Routing protocol
- OSPF, RIP-2, BGP, EIGRP, MSDP, MPLS, RSVP,VXLAN
- CPU
- Intel Xeon D-1500
- Ports
- - 128 x 10/25GbE or 32 x 40/100/400GbE
- Standards compliance
- IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz, IEEE 802.1Qau, IEEE 802.1Qbg, Shaped Deficit Weighted Round-Robin (SDWRR)
- Included software
- Junos OS
- chassis type
- Rack-mountable - 1U
