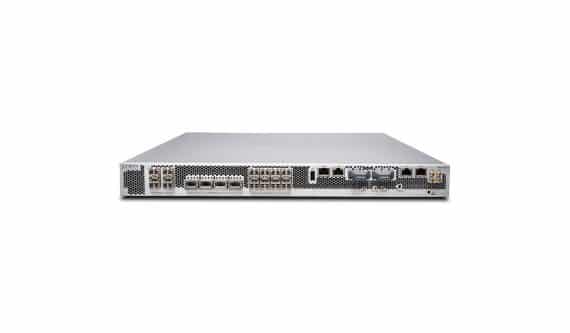

- Juniper Networks SRX 4600 Services Gateway
- Features
- Protection Firewall, support NAT, support VPN, support VLAN, serveur DNS dynamic, support IPv6, analyse antivirus, haute availability, system de prevention intrusions (IPS), prevention attaques DDos, detection early weighted aléatoire (WRED), protocole de redondance d'routes virtuel ), support, network privé virtuel (VPN) IPSec, protection anti-spam, Quality of Service (QoS), detection pairs morts (DPD), NAT-T (IPSec NAT-Traversal), serveur DHCP, proxy DNS (ECMP), relais DHCP, client DHCP, J-Flow, protocole de découverte de source multicast (MSDP), encapsulation de Routing générique (GRE), support point de code DiffServ (DSCP), filtrage IGMP, multicast source spécifique (SSM)
- performance
- - Firewall throughput: 90 Gbps
- Firewall throughput (IMIX): 75 Gbps
- Throughput d'application: 80 Gbps
- IPS throughput: 20 Gbps
- Throughput NGFW: 20 Gbps
- VPN throughput (IMIX IPSec): 16 Gbps
- VPN throughput (1400 B IPSec) : 38 Gbps
- Firewall throughput (UDP de 64 bytes): 17 Gbps
- Firewall throughput (IMIX UDP): 75 Gbps
- Firewall throughput (UDP de 1518 bytes): 95 Gbps
- Capacity
- - Firewall connections per second: 500000
- Maximum number of sessions: 60000000
- policies de security: 80000
- Entries de Routing table IPv4: 4000000
- Entries de Routing table IPv6: 2000000
- Data link protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet
- Routing protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv3, Bidirectional PIM, Static routing IPv4, Static routing IPv6
- Algorithme de chiffrement
- DES, Triple DES, IKE, SHA-1, PKI, 256-bit AES, IKEv2, 256-bit SHA, 128-bit SHA
- Protocoles VoIP
- SDP
- Protocole network / transport
- IPSec, PPPoE, DHCP, DNS, DDNS
- Ports
- - 8 x 10Gb Ethernet - SFP+
- 4 x 40Gb Ethernet/100Gb Ethernet - QSFP28
- 1 x 1000Based-T (management) - RJ-45
- 2 x 10Gb Ethernet (HA) control - SFP+
- 2 x 10Gb Ethernet (HA) data - SFP+
- 1 x management (RS-232) - RJ-45
- 1 x USB 2.0 - Type A
- 1 x console - RJ-45 ¦ 2 x USB 2.0 - Type A
- RAM
- 256 GB
- Disque dur
- SSD 1 TB x 2
- Remote management protocol
- SNMP, Telnet, HTTP, SSH, CLI
- Standards compliance
- IEEE 802.1p, IEEE 802.1x
- Included software
- JUNOS
- Expansion slots
- 0 (total) / 0 (free) x Logement for extension
- Power supply
- CA 120/230 V (50/60 Hz)
- Power consumption
- 15.4 Watt
- chassis type
- Rack-mountable 1U
