- Product

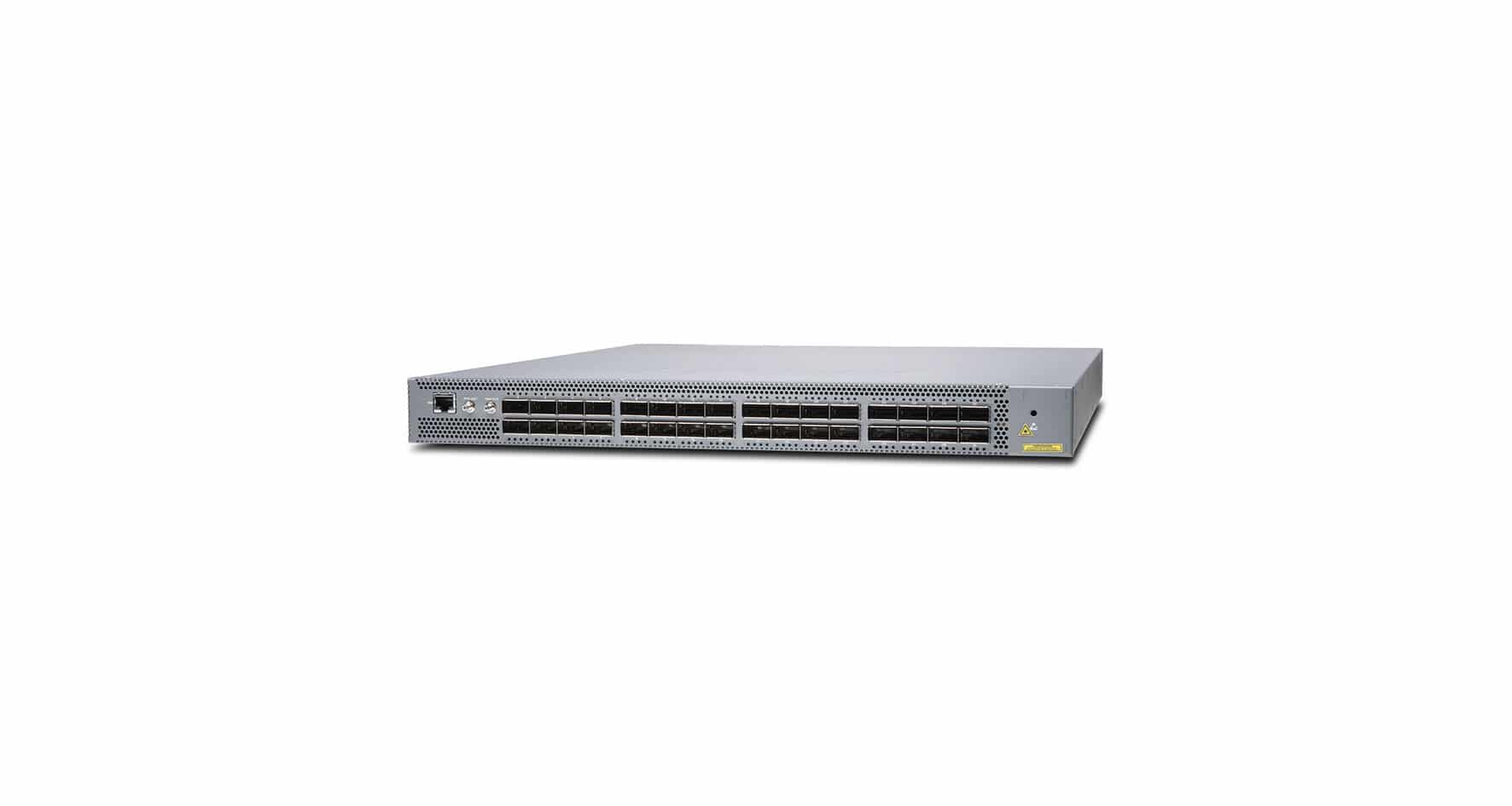

- Juniper QFX5200-32C-AFI
- performance
- - Throughput: 3.2 Tbps
- Forwarding capacity : 2.1 Bpps
- Capacity
- - ID de VLAN : 4096
- Groupes d'aggregation de liens : 128
- Maximum number of ports membres per LAG: 64
- Routes IPv4 (Unicast, prefixedd) : 128000
- Routes IPv4 (Unicast, routes d'hosts) : 104000
- Routes IPv4 (multicast): 52000
- Routes IPv6 (multicast): 28000
- Routes IPv6 (Unicast, prefixedd) : 98000
- Routes IPv6 (Unicast, routes d'hosts) : 52000
- Entries ARP: 32000
- Tunnels GRE: 1024
- Étiquettes MPLS: 16000
- Instances MSTP: 64
- Instances VSTP : 253
- Files d'attente hardware QoS per port: 10
- MAC address table size
- 136000 entries
- Data link protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
- Routing protocol
- OSPF, IS-IS, RIP-1, RIP-2, BGP, IGMPv2, IGMP, VRRP, OSPFv2, PIM-SM, Static IP routing, PIM-DM, GRE, OSPFv3, PIM-SSM, MLDv2, MLD
- Algorithme de chiffrement
- MD5, AES
- Protocoles VoIP
- SDP
- Ports
- - 32 x 100Gbit/40Gbit - QSFP28/QSFP+
- 1 x console management
- 1 x USB 2.0 management
- 2 x 1000Based-T RJ-45 management
- 2 x SFP management
- Power Over Ethernet (PoE)
- - PoE+
- Budget PoE : 740W
- Processor
- 1.8 GHz
- RAM
- 16 GB
- Disque Dur
- SSD 64 GB
- Flash memory
- 2 GB
- Remote management protocol
- SNMP 1, SNMP 2, Telnet, SNMP 3, SSH, CLI
- Standards compliance
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
- Included software
- JUNOS
- Expansion slots
- 2 (total) / 2 (free) x Logement for extension
- Power supply
- CA 120/230 V (50/60 Hz)
- Power consumption
- 480 Watt
- chassis type
- 1U
