- Product

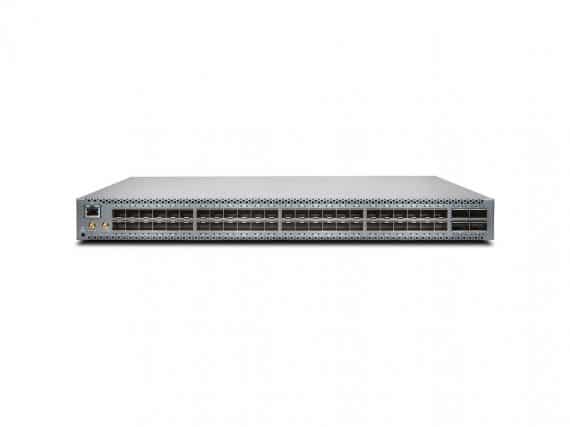

- Juniper QFX5110-48S-AFI
- performance
- - Switching capacity: 1.76 Tbps
- Switching capacity: 1.32 Bpps
- Capacity
- - Entries d'adresses MAC: 288000
- ID de VLAN : 4093
- Groupes LAG: 104
- Maximum number of ports membres per LAG: 32
- Filtres d'entries de Firewall : 6142
- Filtres de output de Firewall : 1022
- Routes IPv4 (unicast): 128000
- Routes IPv4 (multicast): 104000
- Routes IPv6 (multicast): 52000
- Routes IPv6 (unicast): 84000
- Entries ARP: 48000
- size de cadre large: 9216
- Instances MSTP: 64
- Instances VSTP : 253
- Files d'attente hardware QoS per port: 12
- MAC address table size
- 288000 entries
- Data link protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
- Routing protocol
- OSPF, RIP, IS-IS, BGP, IGMPv2, IGMP, VRRP, Static IP routing, IGMPv3
- Algorithme de chiffrement
- MD5, AES
- Protocoles VoIP
- SDP
- Ports
- - 48 x 1/10Gbit LAN SFP+
- 4 x 100Gbit/40Gbit LAN QSFP28/QSFP+
- 1 x USB 2.0
- 1 x series (RS-232)
- 2 x management
- Power Over Ethernet (PoE)
- - PoE+
- Budget PoE : 740W
- Processor
- 1.8 GHz
- RAM
- 16 GB
- Disque Dur
- SSD 64 GB
- Flash memory
- 2 GB
- Remote management protocol
- SNMP 1, SNMP 2, Telnet, SNMP 3, SSH, CLI
- Standards compliance
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
- Included software
- JUNOS
- Expansion slots
- 2 (total) / 2 (free) x Logement for extension
- Power supply
- CA 120/230 V (50/60 Hz)
- Power consumption
- 350 Watt
- chassis type
- 1U
