- Product

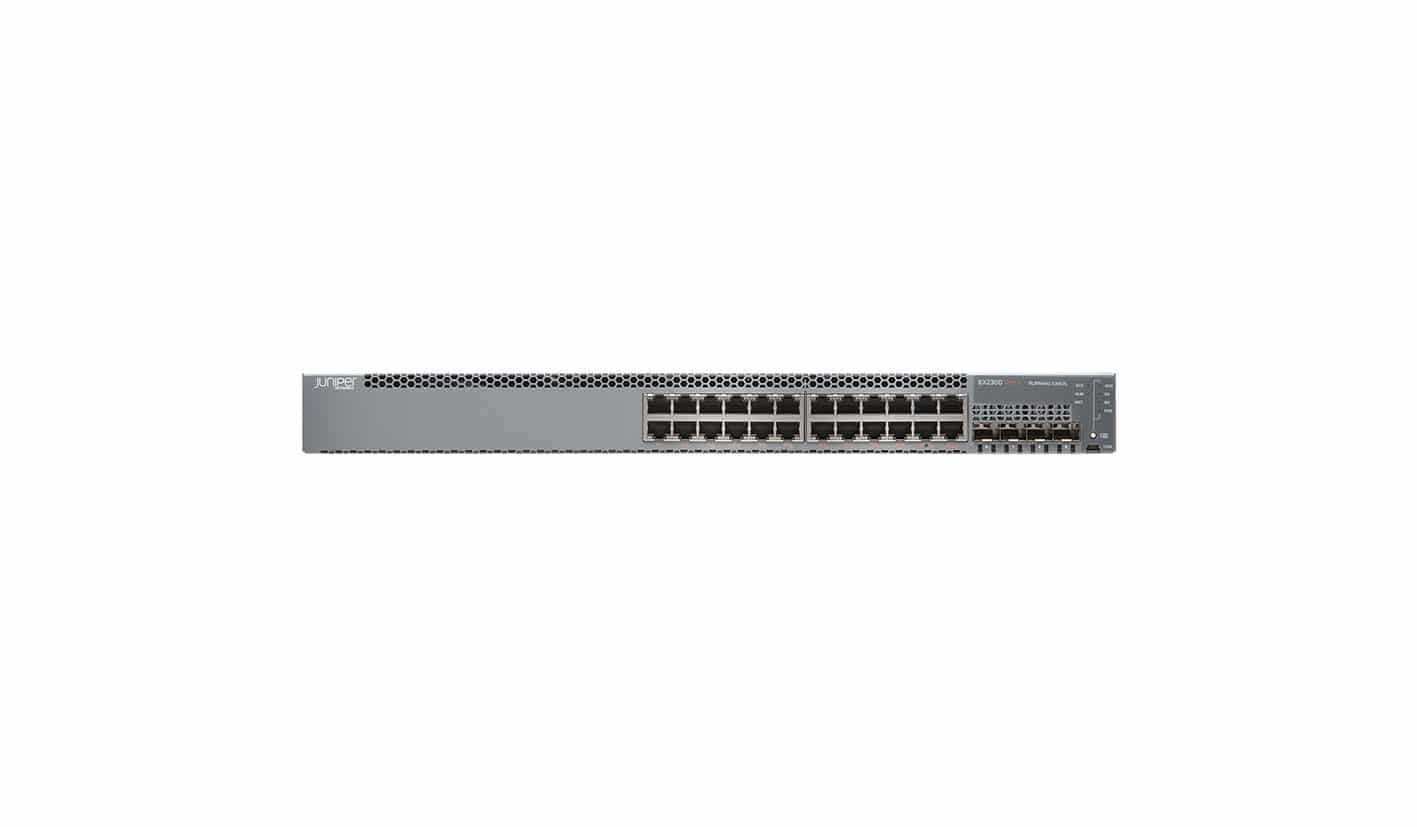

- Juniper EX2300
- Features
- IGMP snooping, régulation de trafic, control storm de Broadcast, Multicast Storm Control, support protocole STP (Spanning Tree Protocol), support protocole RSTP (Rapid Spanning Tree Protocol), support protocole VRRP (Virtual Route Redundancy Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), assistance accesss Control List (ACL), Quality of Service (QDS), serveur DHCP, Redundant trunk group (RTG), support LLDP, relais DHCP, Link Aggregation Control Protocol (LACP), control d'accès based sur les ports, client DHCP, VLAN Spanning Tree Protocol (VSTP), synchronisation temporelle NTP, aggregation de liens, balisage VLAN, Type of Service (ToS), support DiffServ Code Point (DSCP), filtrage IGMP, support de VLAN on protocole, Uplink Failure detection (UFD), remarquage trafic, Role-Basedd accesss Control (RBAC), Network Timing Protocol (NTP), Routing en fonction rules
- performance
- - Switching capacity: 128 Gbps
- Performances de transfert: 95 Mpps
- Capacity
- - Interfaces virtuelles (VLAN): 1024
- Entries d'observation IGMP: 1000
- Data link protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet, HDLC, Frame Relay, PPP, MLPPP, MLFR
- Routing protocol
- OSPF, RIP-1, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3
- Algorithme de chiffrement
- DES, Triple DES, MD5, IKE, SSL, SHA-1, PKI, AES 256 bits, IKEv2, SHA 256 bits
- MAC address table size
- 16000 entries
- Protocoles VoIP
- SDP
- Ports
- - 24 x 1000Based-T RJ-45 PoE+
- 4 x LAN 10 GB SFP+
- 1 x console RJ-45 management
- 1 x 1000Based-T RJ-45 management
- 1 x console (mini-USB) management
- 1 x USB
- Power Over Ethernet (PoE)
- - PoE+
- Budget PoE : 370W
- RAM
- 512 MB
- Flash memory
- 1 GB
- Remote management protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2
- Standards compliance
- IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.1ak
- Included software
- JUNOS
- Expansion slots
- 0 (total) / 0 (free) x expansion Slots
- Power supply
- CA 120/230 V (50/60 Hz)
- Power consumption
- 450 Watt
- chassis type
- 1U
