- Product

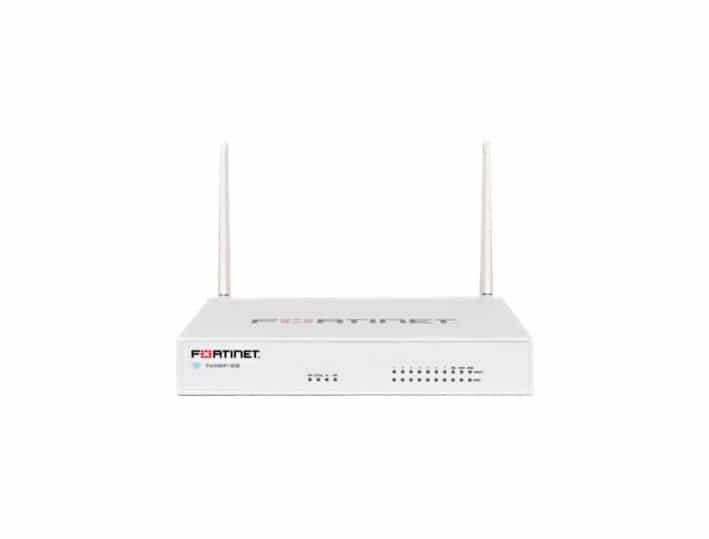

- Fortinet FortiWiFi 61E
- Type de device
- Firewall
- Features
- firewall protection, support VPN, administrable, analyse antivirus, IPS (Intrusion prevention System), ASIC VPN, filtrage URL, protection contre les menaces Web, filtrage applications
- performance
- - Firewall performance (packet size 1518 bytes): 3 Gbps
- Firewall performance (packet size 512 bytes): 3 Gbps
- Firewall throughput (packet size 64 bytes): 3 Gbps
- IPS throughput: 350 Mbps
- VPN throughput (IPSec): 2 Gbps
- Latency de Firewall (UDP 64 bytes): 3 µs
- Firewall throughput: 4.5 Mpps
- VPN throughput (SSL): 150 Mbps
- Inspection throughput SSL: 340 Mbps
- IPS throughput (HTTP): 1.4 Gbps
- Throughput d'application: 550 Mbps
- NGFW throughput: 250 Mbps
- Throughput protection contre les menaces: 180 Mbps
- CAPWAP throughput: 1.5 Gbps
- Capacity
- - VPN tunnels IPSec de passerelle à passerelle: 200
- VPN tunnels IPSec between a client and a passerelle: 500
- Sessions TCP concurrentes: 1300000
- New sessions per second: 30000
- Politiques de Firewall: 5000
- Number of modules FortiAP: 10
- Number of modules FortiToken: 100
- Number of devices FortiClient: 200
- Domaines virtuels: 10
- Processor
- 1 x Fortinet FortiASIC SOC3
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- IPSec
- Flash memory
- 16 GB
- Data link protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote management protocol
- HTTP,SNMP
- Disque dur
- 1 x 32 GB SSD
- Algorithme de chiffrement
- SSL, SHA-1, AES 256 bits
- Prise en charge PoE
- PoE +
- Interfaces
- - 2 x 1000Based-T - RJ-45 (WAN)
- 7 x 1000Based-T - RJ-45
- 1 x console - RJ-45
- 1 x USB - Type A
- 1 x 1000Based-T - RJ-45 (DMZ)
- Compliance standards
- IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac
- Divers
- - cables included : 1 x cables network
- system d'exploitation
- FortiOS 5
- Power supply
- - device d'power supply : Adaptateur secteur externe
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 16 Watt
