- Product

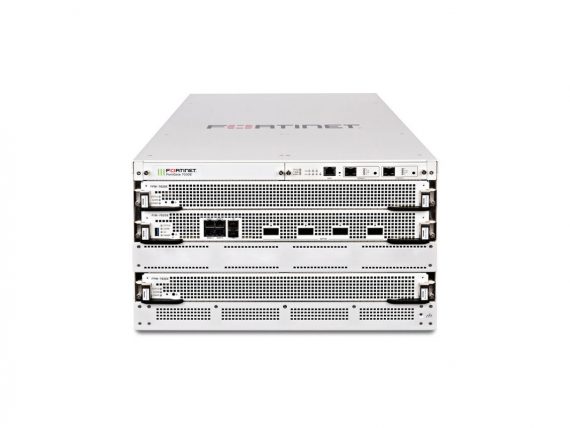

- Fortinet FortiGate 7030E-SFP10G - Enterprise Bundle
- Type de device
- Firewall
- Service Inclus
- 5 ans d'assistance complète FortiCare 24X7 + 5 ans FortiGuard
- Features
- Conception modulaire, protection per Firewall, remplacement module hot swap, switching, Routing, support VPN, administrable, haute availability, system de prevention intrusions (IPS), network privé virtuel (VPN) IPSec, protection contre les logiciels malveillants, Firewall de centre de data (DCFW), Firewall de class opérateur (CCFW)
- performance
- - Firewall throughput (UDP 1518/512/64 bytes): 155 Gbps
- Latency Firewall (64 bytes UDP): 7 µs
- Firewall throughput: 220 Mpps
- VPN throughput (IPSec 512 bits): 40 Gbit /s )
- D"bit IPS : 15 Gbps
- IPS throughput (HTTP): 90 Gbps
- IPS throughput (mélange de trafic d'entreprise): 60 Gbps
- Throughput d'inspection SSL: 50 Gbps
- Throughput control d'application (AVC): 65 Gbps
- Throughput NGFW: 50 Gbps throughput: 35 Gbps
- Capacity
- - Concurrent TCP sessions: 160000000
- New TCP sessions per second: 900000
- Firewall policies: 200000
- Gateway to gateway IPSec VPN Tunnels: 40000
- Client to gateway IPSec VPN tunnels: 64000
- Concurrent SSL VPN users: 48000
- Virtual domains: 500
- Number of FortiToken devices: 5000
- Number of FortiClient devices: 20000
- Processor
- 2 x Fortinet FortiASIC CP9/NP6
- Disque dur
- 2 TB - SSD NVMe
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- TCP / IP, UDP / IP, IPSec
- Flash memory
- 16 GB
- Data link protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
- Remote management protocol
- SNMP, Telnet, HTTP, HTTPS, SSH, CLI
- Algorithme de chiffrement
- SSL, 128-bit AES, 256-bit AES, 256-bit SHA, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 32 x 10Gb Ethernet - SFP+
- 2 x 10GBased-T (management) - SFP+
- 1 x management - RJ-45
- 2 x console - RJ-45
- 4 x 1000Based-T (management) - RJ-45
- 1 x USB 3.0 - Type A
- Compliance standards
- UL, VCCI, BSMI, IPSec ICSA certified, Firewall ICSA certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS network, RCM, ICSA SSL-VPN
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Modules d'extension
- 3 (total) / 0 (free) x connecteur d'extension
- Power supply
- - device d'power supply : Power supply electrical interne - enfichable hot
- Number installed : 3
- Number max. pris en charge : 4
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 1390 Watt
- chassis type
- 6U
