- Product

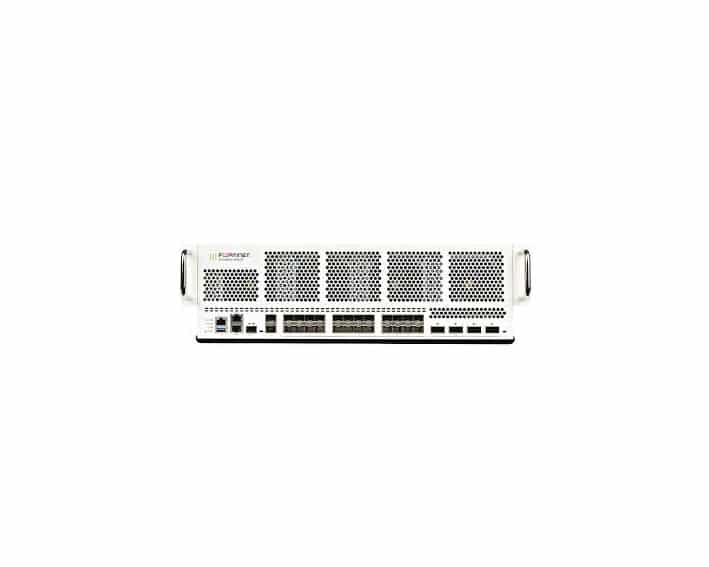

- Fortinet FortiGate 3240C
- Type de device
- Firewall
- Features
- Protection per Firewall, switching, Routing, balancing de charge, management trafic, management IPv6, haute availability, system de prevention intrusions (IPS), capacity d'accélération VPN, protection contre les logiciels malveillants, support support déchargement somme de control, Firewall centre de data (DCFW), Firewall de class opérateur (CCFW), accélération tunnel IP
- performance
- - Firewall throughput (UDP de 1518 bytes): 239 Gbps
- Firewall throughput (UDP de 512 bytes): 238 Gbps
- Firewall throughput (64 bytes UDP): 135 Gbps
- Latency Firewall: : 202.5 Mpps
- VPN throughput (IPSec 512 bits): 160 Gbps
- Throughput d’inspection SSL: 130 Gbps
- Throughput control d’application (AVC): 220 Gbits/s
- IPS throughput (répartition optimale trafic): 230 Gbit/s ): 170 Gbps
- Throughput NGFW: 150 Gbps
- Threat protection throughput: 100 Gbps
- Capacity
- - Concurrent TCP sessions: 200000000
- New TCP sessions per second: 3000000
- Firewall policies: 200000
- Gateway to gateway IPSec VPN Tunnels: 16000
- Client to gateway IPSec VPN tunnels: 90000
- Concurrent SSL VPN users: 30000
- Virtual domains: 10
- Maximum virtual domains: 500
- Number of FortiToken devices: 20000
- Number of registered FortiClients: 100000
- Processor
- Fortinet FortiASIC CP9/NP6
- Disque dur
- 64 GB SSD
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- TCP / IP, UDP / IP, IPSec
- Flash memory
- 16 GB
- Data link protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, 25 Gigabit Ethernet
- Remote management protocol
- SNMP, Telnet, HTTP, HTTPS, SSH, CLI
- Algorithme de chiffrement
- SSL, 128-bit AES, 256-bit AES, 256-bit SHA, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 4 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
- 24 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP28
- 2 x 10Gb Ethernet - SFP+
- 2 x 1000Based-T (management) - RJ-45
- 1 x 1 Gigabit Ethernet/10Gb Ethernet (management) - SFP+
- 1 x USB 3.0 - Type A
- 1 x console - RJ-45
- Compliance standards
- UL, VCCI, BSMI, IPSec ICSA certified, Firewall ICSA certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS network, RCM, ICSA SSL-VPN
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Power supply
- - device d'power supply : Power supply electrical interne - enfichable hot
- Number installed : 3
- Number max. pris en charge : 3
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 1308 Watt
- chassis type
- 3U
