- Product

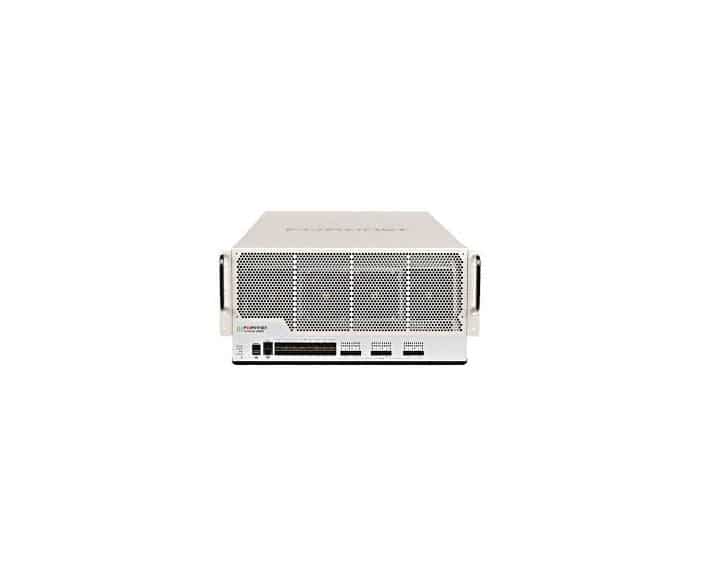

- Fortinet FortiGate 3960E
- Type de device
- Firewall
- Features
- firewall protection, support VPN, régulation de trafic, administrable, support of IPv6, analyse antivirus, IPS (Intrusion prevention System), support IPv4, support déchargement somme de control
- performance
- - IPS throughput (répartition optimale trafic): 80 Gbps
- IPS throughput (mix de trafic d'entreprise): 30 Gbps
- VPN throughput (IPSec 512 bits): 280 Gbps
- Latency Firewall (UDP 64 bytes): 3 µs
- Firewall throughput: 555 Mpps
- Throughput d'inspection SSL: 30 Gbps
- Firewall throughput (UDP de 1518 bytes): 620 Gbits/s
- Firewall throughput (UDP de 512 bytes): 610 Gbits/s
- Firewall throughput (UDP de 64 bytes) throughput: 40 Gbit/s
- Throughput CAPWAP: 13,5 Gbit/s
- VPN throughput (SSL): 9 Gbit/s
- Throughput NGFW: 22 Gbit/s
- Threat protection throughput: 13,5 Gbit/s
- Capacity
- - IPsec VPN tunnels: 200000
- Passerelle to la passerelle VPN tunnels IPSec: 40000
- Sessions TCP concurrent: 160000000
- New sessions TCP per second: 550000
- policies de Firewall: 200000
- Domaines virtuels: 10 (maximum 500)
- Number of devices FortiClient : 100000
- Number of devices FortiToken: 5000 users
- Users de VPN SSL concurrent: 30000
- Number of devices FortiAP: 4096
- Processor
- Fortinet FortiASIC CP9/NP6
- Disque dur
- 960 GB SSD
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- TCP / IP, UDP / IP, IPSec
- Flash memory
- 16 GB
- Data link protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
- Remote management protocol
- SNMP, Telnet, HTTP, HTTPS, SSH, CLI
- Algorithme de chiffrement
- SSL, 128-bit AES, 256-bit AES, 256-bit SHA, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 6 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28
- 16 x 10Gb Ethernet - SFP+
- 1 x console - RJ-45
- 2 x 1000Based-T (management) - RJ-45
- 1 x USB - Type A
- Compliance standards
- UL, VCCI, BSMI, IPSec ICSA certified, Firewall ICSA certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS network, RCM, ICSA SSL-VPN
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Power supply
- - device d'power supply : Power supply electrical interne - enfichable hot
- Number installed : 3
- Number max. pris en charge : 3
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 960 Watt
- chassis type
- 5U
