- Product

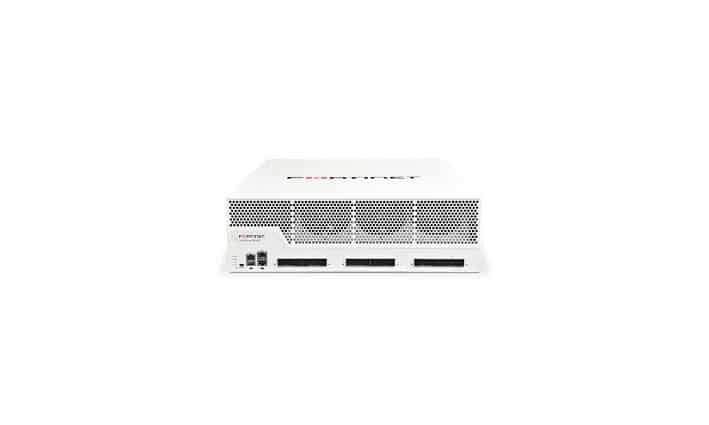

- Fortinet FortiGate 3815D
- Type de device
- Firewall
- Features
- firewall protection, support VPN, régulation de trafic, administrable, support of IPv6, analyse antivirus, IPS (Intrusion prevention System), support IPv4, support déchargement somme de control
- performance
- - Firewall performance (packet size 1518 bytes): 320 Gbits/s
- Firewall performance (packet size 512 bytes): 300 Gbps
- Firewall throughput (packet size 64 bytes): 150 Gbps
- Latency de Firewall (UDP 64 bytes): 5 µs
-Firewall throughput: 262.5 Mpps
- VPN throughput (IPSec 512 bits): 135 Gbps
- VPN throughput (SSL): 10 Gbps
- IPS throughput: 30 Gbits/s
- Throughput anti-virus based sur proxy: 7.5 Gbps
- Throughput anti-virus based sur flux: 18 Gbps
- Capacity
- - Sessions TCP concurrentes: 95000000
- New sessions TCP per second: 480000
- Politiques de Firewall: 100000
- VPN tunnels IPSec de passerelle à passerelle: 40000
- VPN tunnels IPSec between a client and a passerelle: 64000
- Users VPN SSL concurrent: 30000
- Domaines virtuels: 500
- Number of modules FortiAP: 4096
- Number of modules FortiToken: 5000
- Number of devices FortiClient: 20000
- Processor
- Fortinet FortiASIC NP6
- Disque dur
- 2 x 480 GB SSD
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- TCP / IP, UDP / IP, IPSec
- Flash memory
- 16 GB
- Data link protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
- Remote management protocol
- SNMP, Telnet, HTTP, HTTPS, SSH, CLI
- Algorithme de chiffrement
- SSL, SHA-1, AES 256 bits, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 4 x 100 Gb Ethernet - CFP2
- 10 x 10 Gb Ethernet - SFP +
- 2 x 1000Based-T (management) - RJ-45
- 1 x USB
- 1 x USB - Type A
- 1 x console - RJ-45
- Compliance standards
- UL, VCCI, BSMI, IPSec ICSA certified, Firewall ICSA certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS network, RCM, ICSA SSL-VPN
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Power supply
- - device d'power supply : Power supply electrical interne - enfichable hot
- Number installed : 2
- Number max. pris en charge : 2
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 1100 Watt
- chassis type
- 3U
