- Product

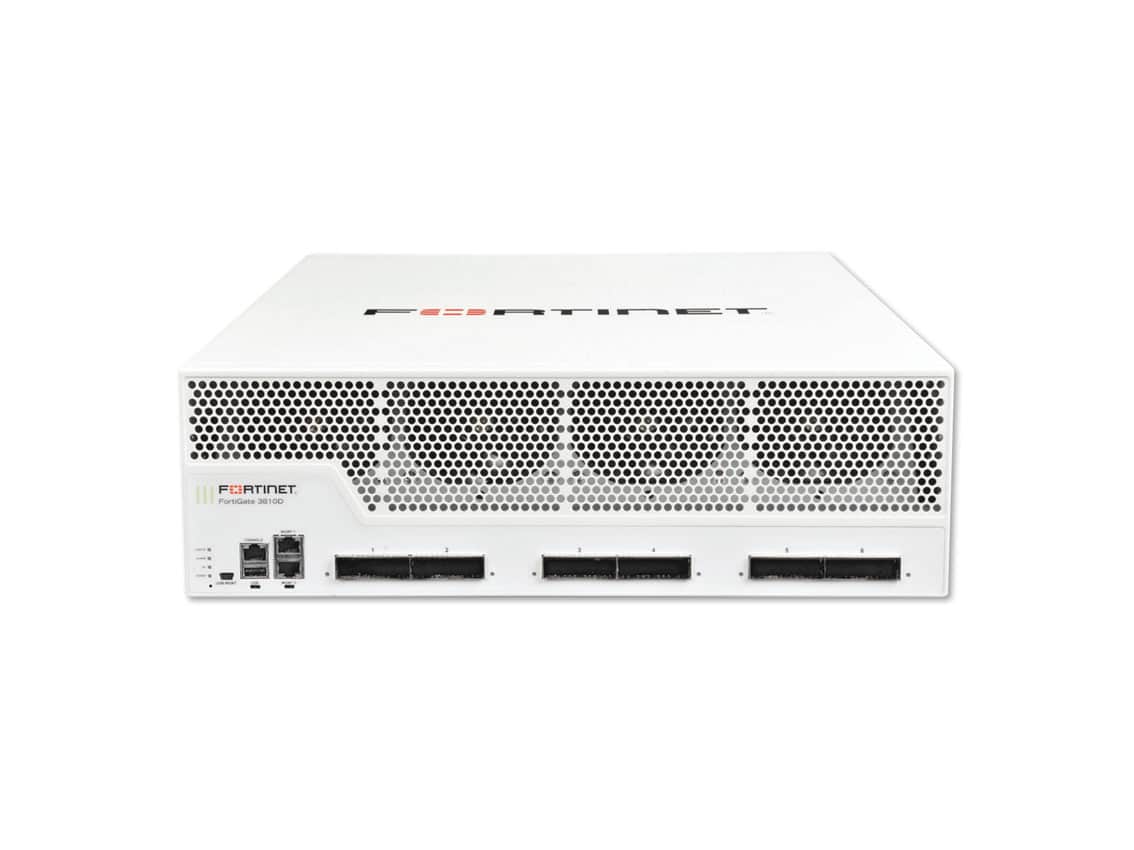

- Fortinet FortiGate 3810D
- Type de device
- Firewall
- Features
- firewall protection, support VPN, régulation de trafic, administrable, support of IPv6, analyse antivirus, IPS (Intrusion prevention System), support IPv4, support déchargement somme de control
- performance
- - Firewall (UDP 1518 bytes): 320 Gbps
- Firewall throughput (UDP 512 bytes): 300 Gbps
- Firewall throughput (UDP 64 bytes): 150 Gbps
- IPS throughput: 30 Gbps
- Latency Firewall (64 bytes UDP) : 5 us
- Firewall: 262.5 Mpps
- VPN throughput (IPSec): 135 Gbps
- VPN throughput (SSL): 10 Gbps
- Throughput d'inspection SSL: 15 Gbps
- NGFW: 12 Gbps
- CAPWAP: 22 Gbps
- Capacity
- - sessions per second: 480000
- Concurrent sessions: 95000000
- policies de Firewall: 100000
- Passerelle à la passerelle IPSec VPN tunnels: 400000
- Client passerelle VPN tunnels IPSec: 64000
- Users concurrent VPN SSL: 30000
- Domaines virtuels: 500
- Number of FortiAP dispositifs: 4096
- Number d'appareils FortiToken: 5000
- Number d'appareils FortiClient: 20000
- Processor
- Fortinet FortiASIC CP8 / NP6
- Disque dur
- 960 GB SSD
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- TCP / IP, UDP / IP, IPSec
- Flash memory
- 16 GB
- Data link protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
- Remote management protocol
- SNMP, Telnet, HTTP, HTTPS, SSH, CLI
- Algorithme de chiffrement
- SSL, SHA-1, AES 256 bits, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 6 x 100 GB Ethernet - CFP2
- 2 x management - RJ-45
- 1 x management (USB)
- 1 x USB - Type A
- 1 x console
- Compliance standards
- UL, VCCI, BSMI, IPSec ICSA certified, Firewall ICSA certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS network, RCM, ICSA SSL-VPN
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Power supply
- - device d'power supply : Power supply electrical interne - enfichable hot
- Number installed : 2
- Number max. pris en charge : 2
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 832 Watt
- chassis type
- 3U
