- Product

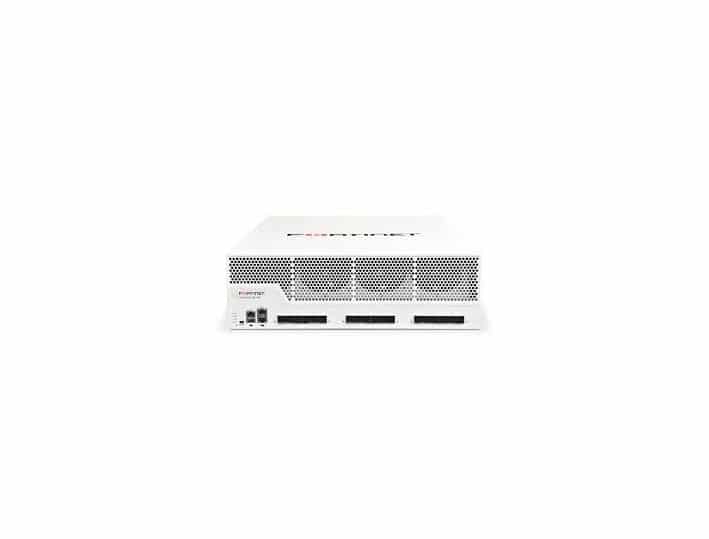

- Fortinet FortiGate 3800D
- Type de device
- Firewall
- Features
- firewall protection, support NAT, support VPN, support PAT, support network local (LAN) virtuel, régulation de trafic, Denial of Service attack protection, filtrage de contenu, support DiffServ, administrable, support of IPv6, analyse antivirus, haute availability, IPS (Intrusion prevention System), filtrage URL, protection anti-spam, journal des événements, Dead Peer detection (DPD), IPSec NAT-traversed (NAT-T), serveur DHCP, support IPv4, filtrage applications, client DHCP, DLP (Data Loss prevention, prevention contre la perte de data), support déchargement somme de control
- performance
- - Firewall throughput (UDP 1518 bytes): 320 Gbps
- Firewall throughput (UDP 512 bytes): 300 Gbps
- Firewall throughput (UDP 64 bytes): 150 Gbps
- IPS throughput: 30 Gbps
- Latency Firewall (64 bytes UDP) : 5 us
- Firewall: 262.5 Mpps
- VPN throughput (IPSec): 135 Gbps
- VPN throughput (SSL): 10 Gbps
- Throughput d'inspection SSL: 23 Gbps
- NGFW: 20 Gbps
- CAPWAP: 22 Gbps
- control d'application ( AVC) throughput: 44 Gbps
- Protection throughput menace: 13 Gbps | IPS throughput (HTTP): 75 Gbps
- Capacity
- - New sessions per second: 480000
- Concurrent sessions: 95000000
- policies de Firewall: 200000
- Passerelle à la passerelle IPSec VPN tunnels: 400000
- Client passerelle VPN tunnels IPSec: 200000
- Users concurrent VPN SSL: 30000
- Domaines virtuels: 500
- Number of FortiAP dispositifs: 4096
- Number d'appareils FortiToken: 5000
- Number d'appareils FortiClient: 100000
- Processor
- Fortinet FortiASIC CP8 / NP6
- Disque dur
- 1 x 960 GB SSD
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- TCP / IP, PPTP, UDP / IP, L2TP, IPSec, SMTP, FTP, DHCP, DNS, POP3, IMAP
- Flash memory
- 16 GB
- Data link protocol
- Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
- Remote management protocol
- SNMP, Telnet, HTTP, HTTPS, SSH, CLI
- Algorithme de chiffrement
- SSL, SHA-1, AES 256 bits, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 4 x 100 GB Ethernet - CFP2
- 4 x 40Gb Ethernet - QSFP +
- 8 x 10 GB Ethernet - SFP +
- 1 x USB
- 2 x 1000Based-T (management) - RJ-45
- 1 x console
- Compliance standards
- UL, VCCI, BSMI, IPSec ICSA certified, Firewall ICSA certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS network, RCM, ICSA SSL-VPN
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Power supply
- - device d'power supply : Power supply electrical interne - enfichable hot
- Number installed : 2
- Number max. pris en charge : 2
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 537.6 Watt
- chassis type
- 3U
