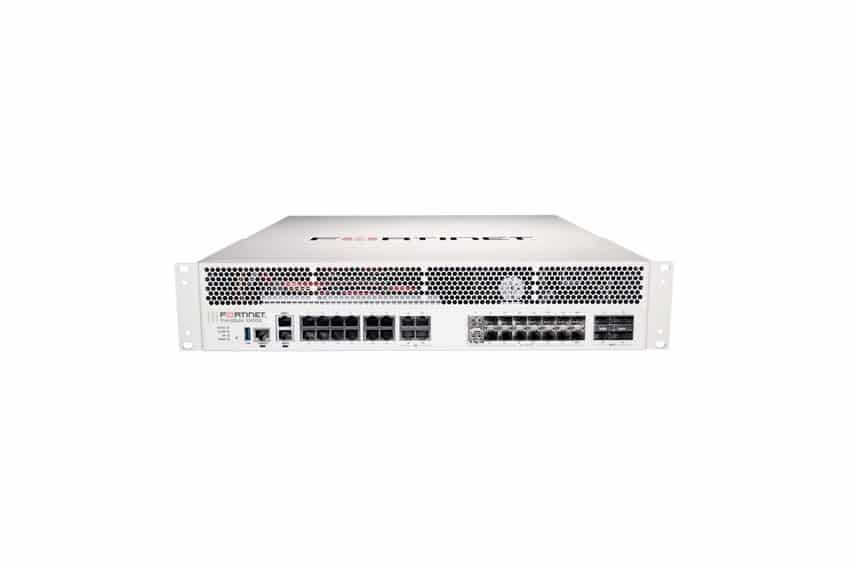

- Fortinet FortiGate 3301E
- Caractéristique
- Protection per Firewall, switching, Routing, support VPN, configuration trafic, support IPv6, haute availability, system de prevention intrusions (IPS), IPSec Virtual Private Network (VPN), protection anti-malware, support IPv4, protection contre les menaces Web, support CAPWAP, somme de control support déchargement, accélération tunnel IP, trafic multicast
- performance
- - IPS throughput: 27 Gbit/s
- Throughput NGFW: 23 Gbit/s
- Threat protection throughput: 17 Gbit/s
- Firewall throughput (1518 bytes UDP): 160 Gbit/s
- Firewall throughput (UDP 512 bytes): 158 Gbit/s
- Firewall throughput (64 bytes UDP ): 100 Gbps
- Latency Firewall (UDP 64 bytes): 4 µs
- Firewall throughput: 150 Mpps
- VPN throughput (SSL): 10 Gbps bps
- Throughput d'inspection SSL: 21 Gbps
- VPN throughput (IPSec 512 bits): 98 Gbps
- Throughput control applications (AVC): 70 Gbps
- Throughput CAPWAP: 55 Gbps
- Capacity
- - Sessions TCP concurrent: 50000000
- New sessions TCP per second: 460000
- policies de Firewall: 200000
- VPN tunnels IPSec passerelle to passerelle: 40000
- VPN tunnels IPSec client to passerelle: 200000
- Connections SSL per second: 11000
- Connections SSL concurrent: 2500000
- Domaines virtuels: 10
- Number of FortiSwitches: 256
- Number of devices FortiAP: 4096
- Number of devices FortiToken: 20000
- Maximum number of points de terminaison enregistrés: 50000
- Ports
- 4 x 40Gb Ethernet - QSFP+
- 16 x 10Gb Ethernet/25Gb Ethernet - SFP+/SFP28
- 2 x 1000Based-T (management) - RJ-45
- 12 x 1000Based-T - RJ-45
- 4 x 10GBased-T - RJ-45
- 1 x USB 3.0 - Type A
- 1 x console
- CPU
- FortiASIC CP9/NP6
- Disque Dur
- SSD replaceable hot 2 x 1 To
OS
FortiOS
- chassis type
- Rack-mountable - 2U
