- Product

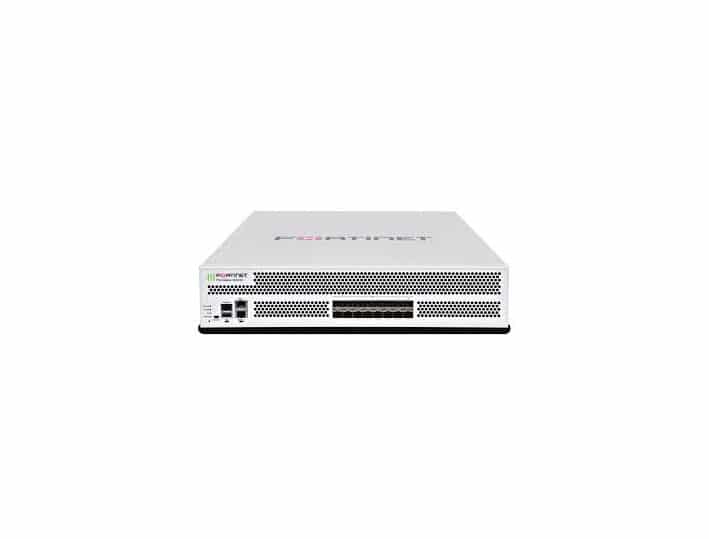

- Fortinet FortiGate 3000D
- Type de device
- Firewall
- Features
- firewall protection, support VPN, régulation de trafic, administrable, support of IPv6, haute availability, IPS (Intrusion prevention System), IPSec Virtual Private Network (VPN), bypass matériel integrated, support IPv4, filtrage applications, support déchargement somme de control
- performance
- - IPS throughput (HTTP): 25 Gbps
- NGFW throughput: 9 Gbps
- VPN throughput (IPSec 512 bits): 95 Gbps
- CAPWAP throughput: 21 Gbps
- VPN throughput (SSL): 6 Gbps
- Latency de Firewall (UDP 64 bytes): 2 µs
- Firewall throughput: 145.5 Mpps
- Inspection throughput SSL: 12.5 Gbps
- Firewall throughput (UDP 1518 bytes): 150 Gbps
- Firewall throughput (UDP 512 bytes): 150 Gbps
- Firewall throughput (UDP 64 bytes): 95 Gbps
- Firewall throughput IPv6 (packet size 1518 bytes): 150 Gbps
- Firewall throughput IPv6 (packet size 512 bytes): 150 Gbps
- Firewall throughput IPv6 (packet size 64 bytes): 95 Gbps
- Throughput d'application: 15 Gbps
- Throughput protection contre les menaces: 5.4 Gbps
- Capacity
- - VPN tunnels IPSec between a client and a passerelle: 50000
- VPN tunnels IPSec de passerelle à passerelle: 20000
- Sessions TCP concurrentes: 20000000
- New sessions TCP per second: 500000
- Politiques de Firewall: 100000
- Domaines virtuels: 500
- Number of modules FortiAP: 4096
- Number of modules FortiToken: 5000
- Maximum number of points d'extrémité enregistrés: 8000
- Processor
- Fortinet FortiASIC CP9 / NP6
- Disque dur
- 1 x 480 GB SSD
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- IPSec
- Flash memory
- 16 GB
- Data link protocol
- Ethernet, Fast Ethernet, 10 Gigabit Ethernet
- Remote management protocol
- HTTP,SNMP,CLI
- Algorithme de chiffrement
- SSL, SHA-1, AES 256 bits, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 10 x 10 Gb Ethernet - SFP+
- 32 x 1000Based-T - RJ-45
- 2 x 10GBASE-SR - LC x 2
- 2 x 1000Based-T (management) - RJ-45
- 1 x USB 3.0 - Type A
- 1 x console - RJ-45
- Compliance standards
- UL, VCCI, BSMI, IPSec ICSA certified, Firewall ICSA certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS network, RCM, ICSA SSL-VPN
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Power supply
- - device d'power supply : Power supply electrical interne - enfichable hot
- Number installed : 2
- Number max. pris en charge : 2
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 470 Watt
- chassis type
- 2U
