- Product

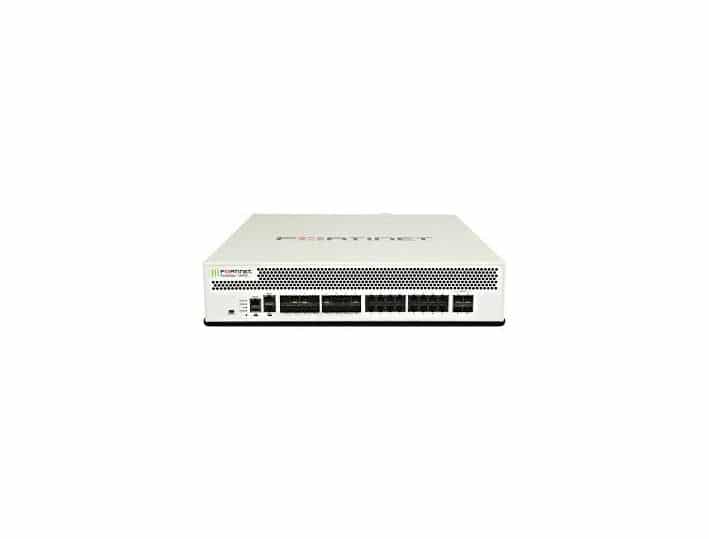

- Fortinet FortiGate 1200D
- Type de device
- Firewall
- Features
- firewall protection, switching, routing, support VPN, filtrage de contenu, administrable, support of IPv6, haute availability, IPS (Intrusion prevention System), filtrage URL, support IPv4, support CAPWAP, support déchargement somme de control, protection antivirus, inspection SSL
- performance
- - Firewall performance (packet size 1518 bytes): 72 Gbps
- Firewall performance (packet size 512 bytes): 72 Gbps
- Firewall throughput (packet size 64 bytes): 52 Gbps
- IPS throughput: 11 Gbps
- IPS throughput (packet size 512 bytes): 48 Gbps
- Throughput anti-virus based sur proxy: 3.5 Gbps
- Throughput anti-virus based sur flux: 9.5 Gbps
- Latency de Firewall (UDP 64 bytes): 6 µs
- Firewall throughput: 78 Mpps
- VPN throughput (IPSec 512 bits): 48 Gbps
- VPN throughput (SSL): 3,6 Gbits/s
- Capacity
- - Concurrent sessions: 11000000
- New sessions per second: 240000
- Politiques de Firewall: 100000
- VPN tunnels IPSec de passerelle à passerelle: 10000
- VPN tunnels IPSec between a client and a passerelle: 50000
- Domaines virtuels: 250
- Number of modules FortiAP: 4096
- Licences users: unlimited
- Number of modules FortiToken: 5000
- Number of devices FortiClient: 8000
- Processor
- Fortinet FortiASIC CP8 / NP6
- Disque dur
- 1 x 240 GB SSD
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- IPSec
- Flash memory
- 16 GB
- Data link protocol
- Ethernet, Fast Ethernet, 10 Gigabit Ethernet
- Remote management protocol
- HTTP,SNMP,CLI
- Algorithme de chiffrement
- SSL, SHA-1, AES 256 bits, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 4 x 1 Gbit Ethernet / 10Gb Ethernet - SFP+
- 16 x Ethernet 1000 - SFP (mini-GBIC)
- 16 x 1000Based-T - RJ-45
- 2 x 1000Based-T (management) - RJ-45
- 1 x USB 2.0 - Type A
- 1 x USB 2.0 - type B
- 1 x console - RJ-45
- Compliance standards
- UL, VCCI, BSMI, IPSec ICSA certified, Firewall ICSA certified, cUL, ICSA Antivirus, CB, FCC Part 15 B Class A, ICSA IPS network, RCM, ICSA SSL-VPN
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Power supply
- - device d'power supply : Power supply electrical interne - enfichable hot
- Number installed : 2
- Number max. pris en charge : 2
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 332 Watt
- chassis type
- 2U
