- Product

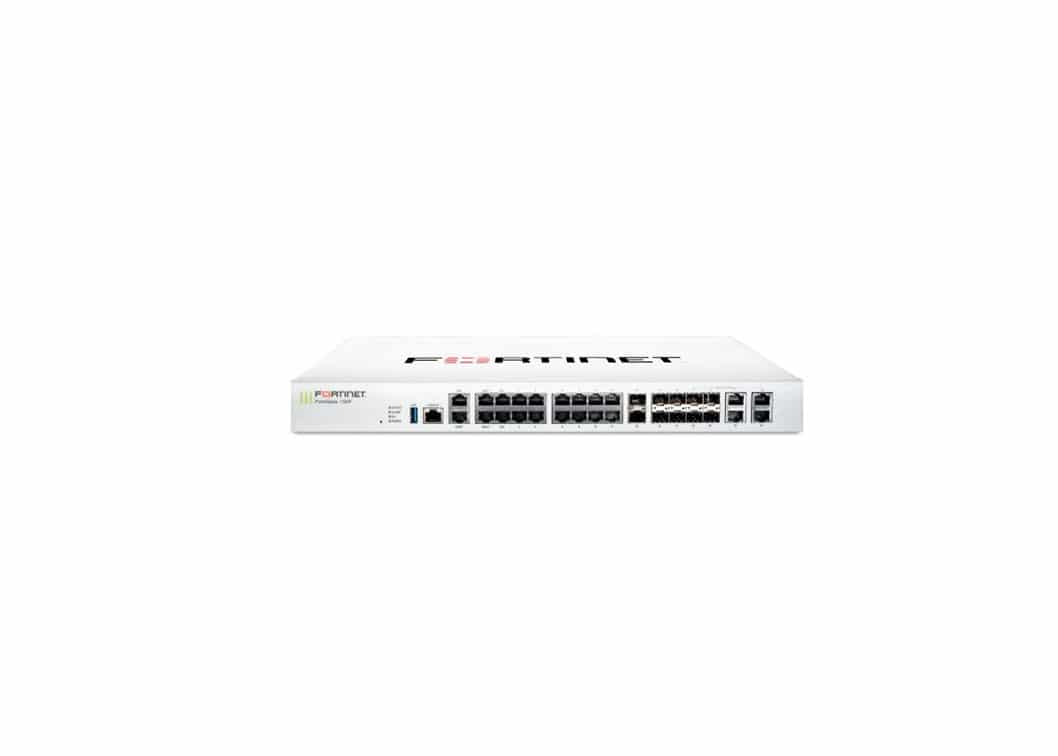

- Fortinet FortiGate 100F
- Caractéristique
- Protection per Firewall, support VPN, mise en forme trafic, filtrage de contenu, analyse antivirus, system de prevention intrusions (IPS), protection anti-malware, protection contre les menaces Web, support CAPWAP, provisionnement Zero-touch (ZTP)
- performance
- - VPN throughput (IPSec): 11.5 Gbps
- Throughput NGFW: 800 Mbps
- Throughput d'inspection SSL: 1 Gbps
- IPS throughput: 1.6 Gbps
- Throughput Firewall: 20 Gbps
- Threat protection throughput: 700 Mbps
- Capacity
- - Firewall throughput: (packets UDP 1518/512/64 bytes) 20/18/10 Gbps
- Latency Firewall (packets UDP 64 bytes) : 5 μs
- Firewall throughput (packets per second) : 15 Mpps
- Concurrent sessions (TCP) 1,5 million
- New sessions / second (TCP) : 56000
- policies de Firewall : 10000
- VPN throughput IPsec (512 bytes) : 11,5 Gbit / s
- VPN tunnels IPsec de passerelle à passerelle
- VPN tunnels IPsec client-à-passerelle : 16000
- Throughput SSL-VPN :750 Mbps
- Users SSL-VPN concurrent : (Maximum recommandé, mode tunnel) 500
- Throughput d'inspection SSL (IPS, HTTPS moyen): 1 Gbps
- Inspection SSL CPS (IPS, HTTPS moyen) : 1800
- Sessions concurrent d'inspection SSL (IPS, HTTPS moyen) : 135000
- Throughput control applications (HTTP 64K) 2 2,2 Gbit / s
- Throughput CAPWAP (HTTP 64K) : 15 Gbps
- Domaines virtuels (per défaut / maximum) 10/10
- Maximum number of FortiSwitches pris en charge 24
- Maximum number of FortiAPs : (Mode total / tunnel) 128/64
- Maximum number of FortiTokens : 5000
- Maximum number of FortiClients enregistrés :600
- Configurations de haute availability Active / Active, Active / Passive, Clustering
- Ports
- - 2 x 10Gb Ethernet - SFP+
-10 x Ethernet 1000 - SFP (mini-GBIC)
- 20 x 1000Based-T - RJ-45
- 1 x 1000Based-T (management) - RJ-45
- 1 x network - RJ-45 (DMZ)
- 1 x console - RJ-45
- 1 x USB 3.0
- CPU
- Fortinet FortiASIC SOC4
OS
FortiOS
- chassis type
- Rack-mountable - 2U
