- Product

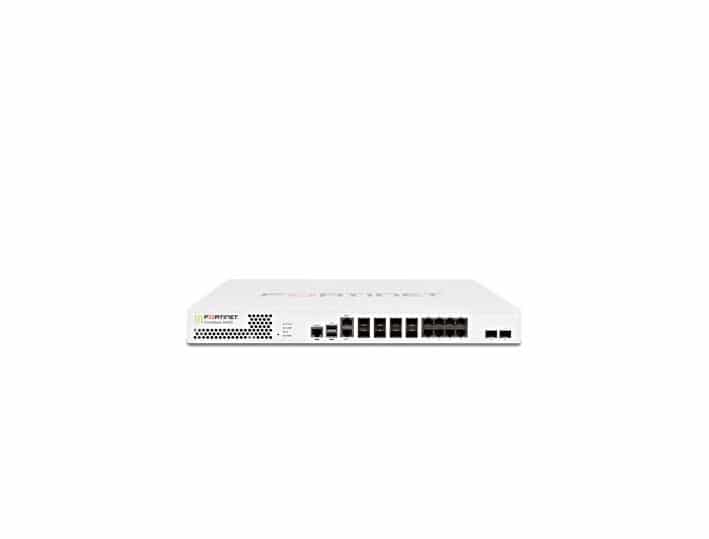

- Fortinet FortiGate 900D
- Type de device
- Firewall
- Features
- firewall protection, switching, routing, support VPN, filtrage de contenu, administrable, support of IPv6, haute availability, IPS (Intrusion prevention System), filtrage URL, support IPv4, support CAPWAP, support déchargement somme de control, protection antivirus, inspection SSL
- performance
- - Firewall throughput (UDP 1518 bytes): 52 Gbps
- Firewall throughput (UDP 512 bytes): 52 Gbps
- Firewall throughput (UDP 64 bytes): 33 Gbps
- VPN throughput (IPSec 512 bits): 25 Gbps
- VPN throughput (SSL): 3,6 Gbits/s
- Latency de Firewall (UDP 64 bytes): 3 µs
- Firewall throughput: 49.5 Mpps
- IPS throughput: 8 Gbit/s
- Capacity
- - Concurrent sessions: 11000000
- New sessions per second: 240000
- Politiques de Firewall: 100000
- VPN tunnels IPSec de passerelle à passerelle: 2000
- VPN tunnels IPSec between a client and a passerelle: 50000
- Users VPN SSL concurrent: 10000
- Domaines virtuels: 10
- Number of modules FortiAP: 512
- Number of modules FortiToken: 1000
- Number of devices FortiClient: 2000
- Processor
- Fortinet FortiASIC CP8
- Disque dur
- 1 x 256 GB SSD
- Bande de fréquence
- 2.4 GHz, 5 GHz
- Antenne
- Number d'antennes : 2
- Protocole network
- IPSec
- Flash memory
- 16 GB
- Data link protocol
- Ethernet, Fast Ethernet, Gigabit Ethernet
- Remote management protocol
- HTTP,CLI
- Algorithme de chiffrement
- SSL, SHA-1, AES 256 bits, TLS 1.2
- Prise en charge PoE
- PoE +
- Interfaces
- - 2 x 10 Gb Ethernet - SFP+
- 16 x 1000Based-X - SFP (mini-GBIC)
- 16 x 1000Based-T - RJ-45
- 2 x 1000Based-T (management) - RJ-45
- 1 x console - RJ-45
- 2 x USB - type A
- 1 x USB - type B
- Compliance standards
- UL, VCCI, C-Tick, certified ICSA IPSec, certified ICSA Firewall, cUL, ICSA Antivirus, CB, FCC Part 15 A, ICSA Network IPS
- Divers
- - cables included : 1 x cables network, 1 x cables network
- system d'exploitation
- FortiOS
- Power supply
- - device d'power supply : Adaptateur secteur externe
- voltage requise : 120/230 V (50 - 60 Hz)
- Consommation : 135 Watt
- Number d'power supply installed : 2
- Number max. pris en charge : 2
- chassis type
- 1U
