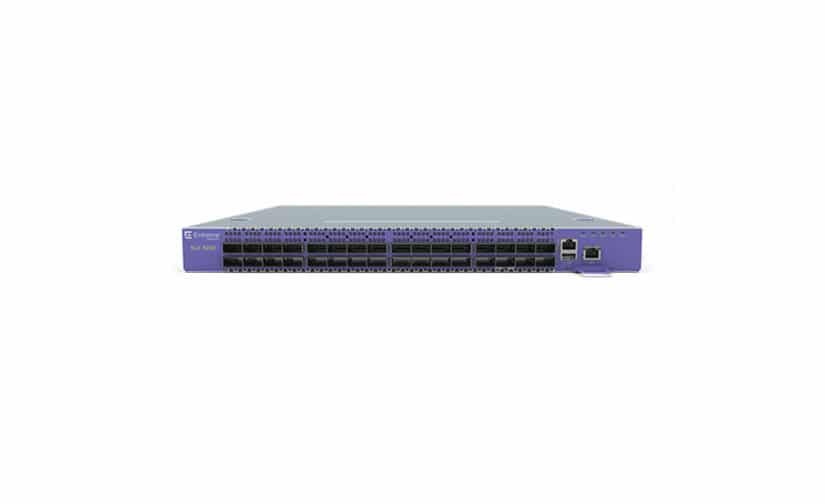

- Extreme Networks X870 -32c
- Le module de ventilation and les blocs d'power supply doivent être commandés séperément
- Features
- sFlow, support Data Center Bridging Exchange (DCBX), sélection de transmission améliorée, fans replaceable hot, tampon de packets de 16 MB, power supply replaceable hot, control de flux en fonction priority (PFC), LAN extensible virtuel (VXLAN), network défini per logiciel (SDN) , Zero-touch provisioning (ZTP)
- capacitys
- - Entries de correspondance de prefixedd la plus longue (LPM) (IPv4): 192000
- hosts hosts IPv4: 72000
- hosts IPv6: 24000
- Groupes de multicast matériels: 4000
- Files d'attente per port: 8
- performance
- - Switching capacity: 6.4 Tbps
- Remote management protocol
- SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, CLI, SCP, NETCONF, SFTP
- Ports
- - 32 x 10Gb/25 Gb/40Gb/50Gb /100Gbit LAN QSFP28
- 1 x management (Gigabit LAN) RJ-45
- 1 x console RJ-45
- 1x USB 2.0 Type A
- 1 x console (micro-USB)
- MAC address table size
- 136K entries
- Disque dur
- 32 GB SSD
- RAM
- 8 GB DDR3 SDRAM
- CPU
- 1 x 2.3 MHz
OS
- Normes de conformités
- AS/NZS 60950-1, EMC, ICES-003 Class A, RoHS, WEEE, CDRH, China RoHS, EN 61000-4-2:2009, EN 61000-4-11:2004, 21 CFR 1040.10, EN 61000-3-3:2013, EN 55024:2010, EN 61000-3-2:2014, IEC 60950-1:2005 + A1:2009 + A2:2013, FCC CFR47 Part 15 A, Directive 2014/35/EU, Directive 2014/30/EU, ETSI EN 300019-2-3 V2.1.2, ETSI EN 300019-2-2 V2.1.2, UL 60950-1:2014, EN/ETSI 300019-2-1 v2.1.2, EN/ETSI 300753, ASTM D3580, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 Second edition, EN 55032:2015 Class A, CISPR 32:2015 Class A, IEC 61000-4-3:2010, IEC 61000-4-4:2012, IEC 61000-4-5:2014, IEC 61000-4-6:2013, EN 61000-4-2:2008
- Montable en rack
- 1U
