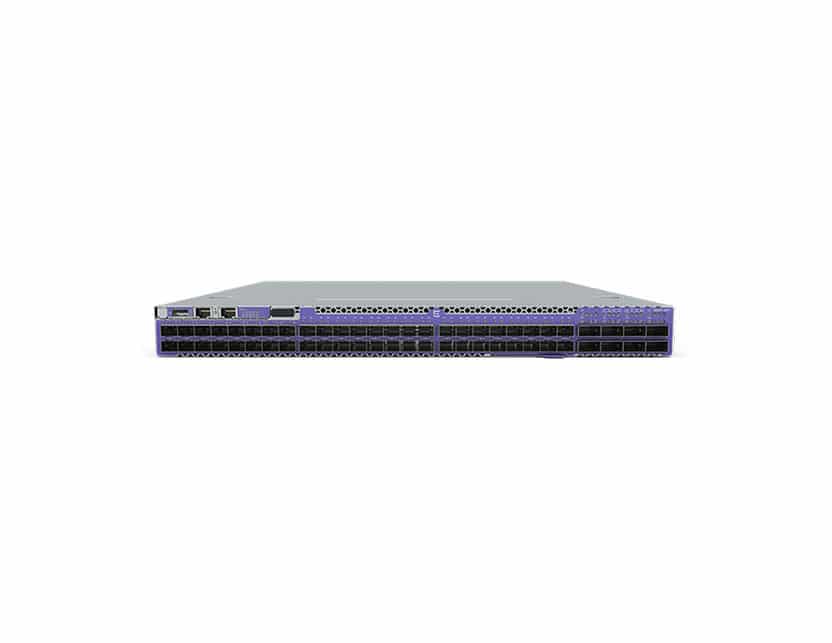

- Extreme Networks X695-48Y-8C
- system X695 with 48 x 10 ports SFP28 10/ 25Gbps, 8 x ports QSFP28 100Gbps,
Processor à 8 cœurs, 16 GB de RAM, SSD de 128 GB, kit de Mounting en rack à 4 montants, pas de bloc d'power supply ni de fans
- Features
- Auto-negotiation, support of ARP, support network local (LAN) virtuel, mise en miroir ports, inspection approfondie, sFlow, support protocole Multiple Spanning Tree Protocol (MSTP), Quality of Service (QDS), flux d'air avant-rear, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), fans replaceable hot, IPFIX, 6 fans, Shortest Path Bridging (SPB), Virtual extensible LAN (VXLAN), support IP Shortcut Routing, Rapid Reconfiguration of Spanning Tree (RSTP), Test de boucle métallique for lignes d'abonnés (MLT),VLAN based sur le port, support Virtual Service Networks (VSN),
- performance
- - Switching capacity: 4 Tbps
- Rate de transfert: 971 Mpps
- Capacity
- - Adresse MAC: 290000
- hosts IPv4:
with entries IPv4 LPM min: 180K
with entries LPM IPv4 max: 164K
- Entries IPv6 LPM (/ 64): 64 KB max with ALPM
- hosts IPv6: 56 KB maximum
- Groupes de multicast IP - 8K
- Protocole de routage
- RIP, OSPF, eBGP, BGP +, ECMP, DvR / VRRP, PIM-SM / SSM,et VRF. En outre, prend en charge Static, RIPng, OSPFv3,Homologation BGPv6, ECMP, VRRP and VRF for Déploiements IPv6
- Ports
- - 48 x SFP28 1Gb/10Gb/25Gb
- 8 x QSFP28 40Gb/100Gb
OS
- Normes de conformités
- BSMI, EN 61000-3-2, SABS, EN 61000-3-3, EN55024, CB, AS/NZS 60950-1, CCC, ICES-003 class A, UL 60950-1, IEC 60950-1, EN 60950-1, KCC, CDRH, VCCI Class A, EAC, GB 9254, EN 300386 V1.6.1, RoHS 2011/65/EU, EN 55011 class A, CISPR 11 class A, WEEE 2012/19/EU, EMC 2014/30/EU, FCC CFR47 Part 15 B Class A, LVD 2014/35/EU, GB 4943.1-2011, IEC/EN 61000-4-3, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, CNS 14336-1, EN 62368-1, IEC 62368-1, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, ETSI EN 300019-2-3 V2.1.2, ETSI EN 300019-2-2 V2.1.2, NRCS, EN/ETSI 300019-2-1 v2.1.2, EN/ETSI 300753, ASTM D3580, CISPR 24:2010 Class A, ACMA RCM, CISPR 32 Class A, EN 60825-1 Class 1, CAN/CSA-C22.2 No. 62368-1, CAN/CSA-C22.2 No. 60950-1, UL 62368-1, China RoHS SJ/T 11363-2006, RoHS CNS 15663, FCC CFR21 Part 1040.10, AS/NZS CISPR 32
- Montable en rack
- 1U
