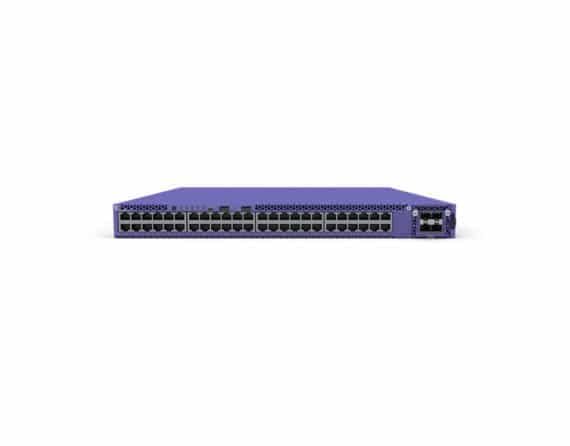

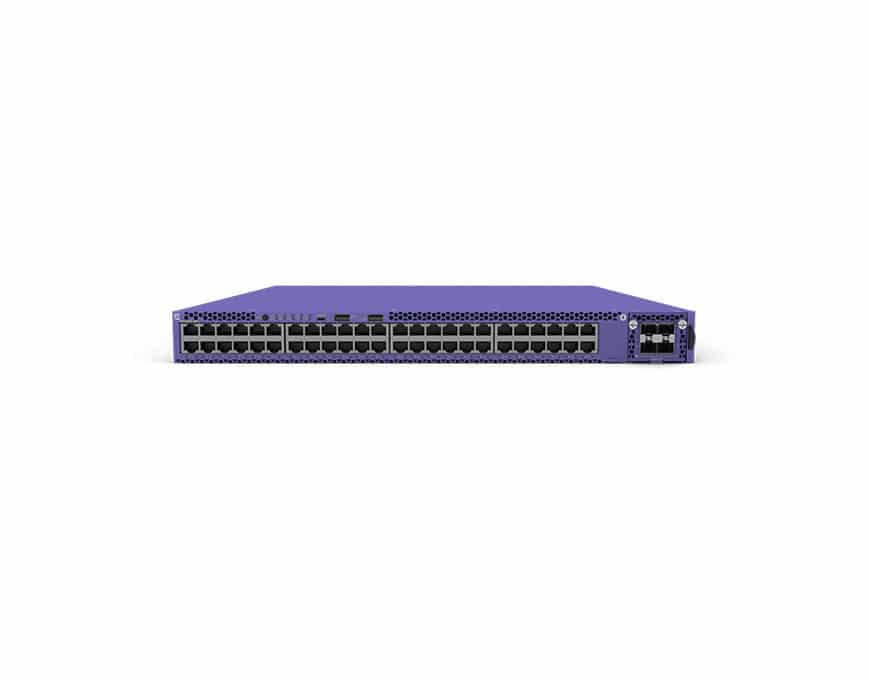

- Extreme Networks VSP4900-48P-B1-4X
- system VSP 4900 with 48 ports 10/100 / 1000Based-T full / half duplex 802.3at PoE (30W) compatibles MACsec, includes 3 modules de ventilation, 1 module VIM5-4X, 1 x 1100W PSU FB (10941), kit de Mounting en rack à 4 montants, system d'exploitation VOSS
- Features
- Quality of Service (QoS), security control d'accès aux médias (MACsec), support ARP, mise en miroir ports, pontage le plus court (SPB), inspection approfondie packets (DPI), IPFIX, protocole de control d'aggregation de liens (LACP), support networks de services virtuels ( VSN), Remote Switch Port Analyzer (RSPAN), Reconfiguration rapide de Spanning Tree (RSTP), Virtual extensible LAN (VXLAN), Metallic Loop Testing for subscriber lines (MLT), Virtual Routing and Forwarding (VRF), Full duplex, VLAN support, support Routing de raccourcis IP, negotiation automatique, sFlow, VLAN based sur le port, support protocole MSTP (Multiple Spanning Tree Protocol)
- performance
- - Switching capacity: 196 Gbps
- Rate de transfert: 145.8 Mpps
- Protocole de routage
- RIPng, PIM-SSM, RIP-2, OSPFv2, IGMPv3, IGMP, OSPFv3, BGP+, RIP-1, IGMPv2, BGP, PIM-SM
- RAM
- 2 GB de memory DDR4 ECC
- Disque Dur
- 8GB eMMC NVRAM
- Ports
- - 48 x 10/100/1000BASE-T 802.3at (30w)
- 1 x management (Gigabit LAN) RJ-45
- 1 x console RJ-45
- 2 x USB 2.0 Type A
- 1 x console (micro-USB)
- 1 x VIM5 Slots
OS
- Normes de conformités
- IEEE 802.1AX, IEEE 802.1p, IEEE 802.3ae, IEEE 802.3u, IEEE 802.1ab (LLDP), IEEE 802.1ah, IEEE 802.1aq, IEEE 802.3ba, IEEE 802.3z, IEEE 802.1w, IEEE 802.3x, IEEE 802.1ae, IEEE 802.3at, IEEE 802.1Qbp, IEEE 802.1s, IEEE 802.3i, IEEE 802.1x, IEEE 802.3an, IEEE 802.1Q, IEEE 802.1Qcj, IEEE 802.1D, IEEE 802.3bm, IEEE 802.1v, IEEE 802.1ag, IEEE 802.1t
- Montable en rack
- 1U
