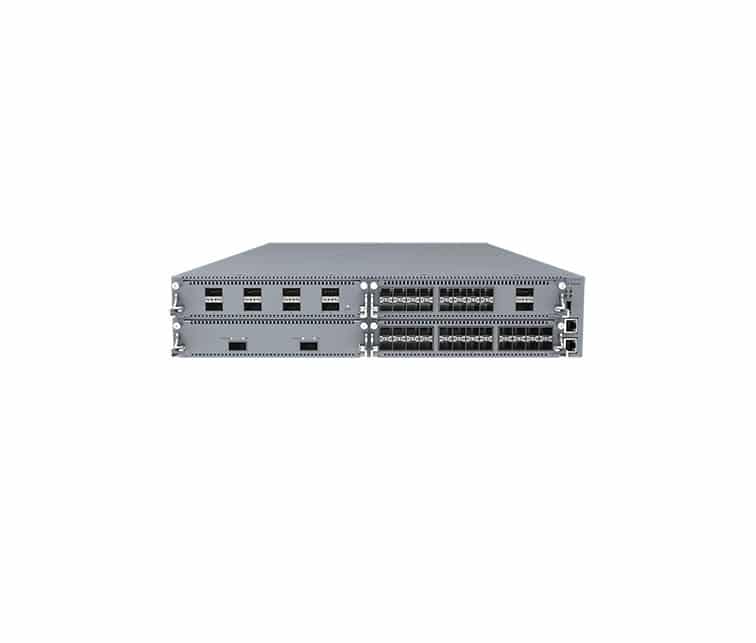

- Extreme Networks VSP 8400 chassis
- Virtual Services Platform 8404C Switch Ethernet à 4 emplacements, compatible 100G, prenant en charge jusqu'à 4 commutateurs Ethernet VSP 8400 Modules. includes a seule power supply CA 800 W 100-240 V (pas de cordon d'power supply), quatre modules de ventilation and a licence de logiciel de based. Faire glisser Kit de Mounting en rack vendu séperément.
- Features
- auto-negotiation, support of ARP, support network local (LAN) virtuel, mise en miroir ports, inspection approfondie, sFlow, support protocole Multiple Spanning Tree Protocol (MSTP), Quality of Service (QDS), flux d'air avant-rear, Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), fans replaceable hot, IPFIX, 6 fans, Shortest Path Bridging (SPB), Virtual extensible LAN (VXLAN), support IP Shortcut Routing, Rapid Reconfiguration of Spanning Tree (RSTP), Test de boucle métallique for lignes d'abonnés (MLT),VLAN based sur le port, support Virtual Service Networks (VSN),
- performance
- - Switching capacity: 2.7Tbps ( up to 21.6Tbps )
- Rate de transfert: 1.428 Mpps
- Capacity
- - MAC Address: 224,000
- Port-basedd VLANs: 4,059
- Private VLANs/E-Tree: Up to 400
- MSTP Instances: 12
- MLT/LACP Groups: up to 96
- MLT Links per Group: 8
- LACP Links per Group: 8 Active
- Extreme Networks VLACP Interfaces: up to 96
- Extreme Networks SLPP VLAN's: 128
- Protocole de routage
- RIP, OSPF, eBGP, BGP +, ECMP, DvR / VRRP, PIM-SM /SSM and VRF. En outre, prend en charge Static, RIPng, OSPFv3, BGPv6 Peering, ECMP, VRRP and VRF for Déploiements IPv6
- Ports
- - Jusqu'à 8 ports 100GBASE-QSFP28
- Jusqu'à 24 ports 40GBASE-QSFP +
- Jusqu'à 96 ports 10GBASE-SFP +
- Jusqu'à 96 x 10GBASE-T Ports
- Jusqu'à 96 ports 1000BASE-SFP
- Jusqu'à 96 ports 1000BASE-T
OS
- Normes de conformités
- 802.3-1983 CSMA/CD Ethernet (ISO/IEC 8802-3), 802.3i-1990 10Mb/s Operation, 10BASE-TCopper, 802.3u-1995 100Mb/s Operation, 100BASE-TCopper, with Auto,Negotiation, 802.3x-1997 Full Duplex Operation, includingFlow Control, 802.3z-1998 1000Mb/s Operation, implemented as 1000BASE-X, 802.3ab-1999 1000Mb/s Operation, 1000BASE-T Copper, 802.3ae-2002 10Gb/s Operation, implemented as 10GBASESFP+, 802.3an-2006 10Gb/s Operation, 10GBASE-T Copper, 802.3ba-2010 40Gb/s and 100Gb/s Operation
- Montable en rack
- 2U
