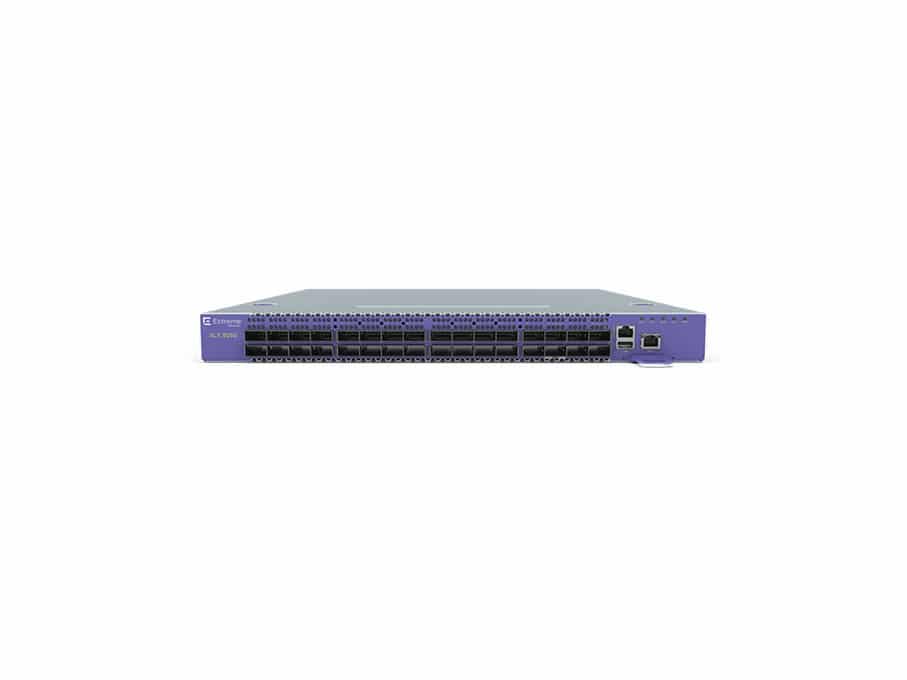

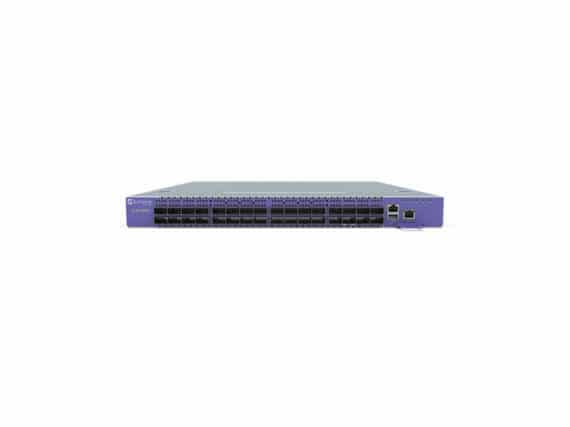

- Extreme Networks SLX9250-32C
- SLX9250-32C Switch with two emplacements d'power supply vides, six emplacements de fans vides, prend en charge 32x100 / 40GE
- Features
- sFlow, support Data Center Bridging Exchange (DCBX), sélection de transmission améliorée, fans replaceable hot, tampon de packets de 16 MB, power supply replaceable hot, control de flux en fonction priority (PFC), LAN extensible virtuel (VXLAN), EVPN,network défini per logiciel (SDN) , Zero-touch provisioning (ZTP)
- capacitys
- - Route Scale IPv4: 47k
- Route Scale IPv6: 33K
- routes unicast IPv4 maximum : 128,000
- Maximum IPv6 unicast routes : 10,000
- Vlan: 4,096
- Files d'attente per port: 8
- Jumbo frame : 9,216 bytes
- Bridge domaine : 2,048
- performance
- - Switching capacity: 6.4 Tbps
- Forwarding capacity : 720 Mpps
- Rate de transfert: 2000 Mpps
- Latency moyenne: 800 ns
- RAM
- 16 GB de memory DDR4 ECC
- Disque Dur
- 128GB SSD
- Ports
- - 32 x QSFP+/QSFP28 40GbE/100GbE ports
- Ou 128 x 25/10 GbE à l'aide de cables de bypass
- 1 x management (Gigabit LAN) RJ-45
- 1 x console RJ-45
- 1x USB 2.0 Type A
- 1 x console (micro-USB)
OS
- Normes de conformités
- 802.3-2005 CSMA/CD accesss Method and Physical Layer Specifications , 802.3ab 1000BASE-, 802.3ae 10 Gigabit Ethernet , 802.3u 100BASE-TX, 100BASE-T4, 100BASE-FX Fast Ethernet at 100 Mbps with Auto-Negotiation , 802.3x Flow Control , 802.3z 1000BASE-X Gigabit Ethernet over fiber optic at 1 Gbps , 802.3ad Link Aggregation ,802.1Q Virtual Bridged LANs, 802.1D MAC Bridges , 802.1w Rapid STP , 802.1s Multiple Spanning Trees , 802.1ag Connectivity Fault Management (CFM) , 8023.ba 100 Gigabit Ethernet , 802.1ab Link Layer Discovery Protocol , 802.1x Port-Basedd Network accesss Control , 802.3ah Ethernet in the First Mile Link OAM3 , ITU-T G.8013/Y.1731 OAM mechanisms for Ethernet4 , 802.1ak for MVRP
- Montable en rack
- 1U
