- Product

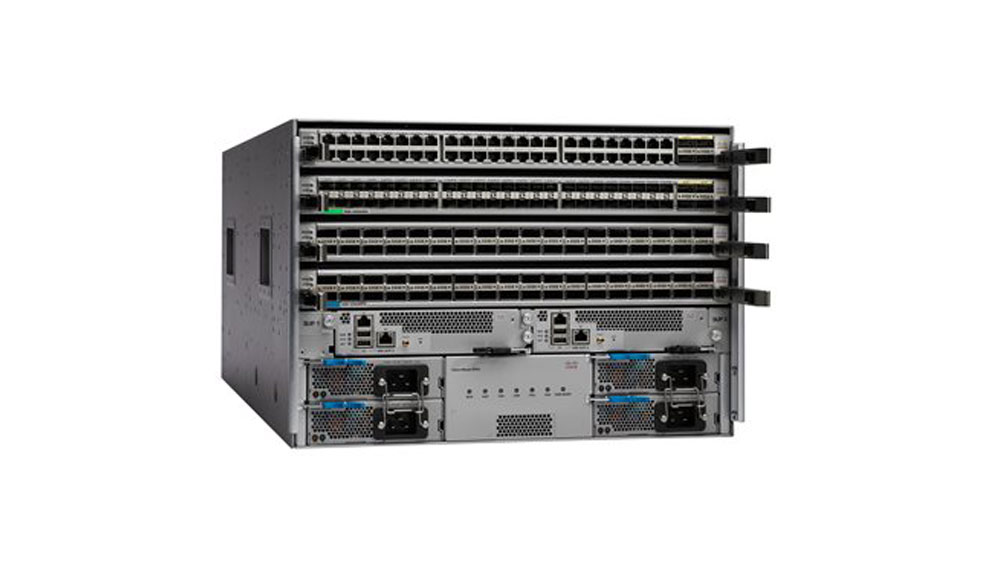

- Cisco Nexus 9508 chassis
- Features
- control flux, Modular design, balancing de charge, support network local (LAN) virtuel, auto-uplink (MDI/MDI-X auto), mise en file d'attente Weighted Round Robin (WRR), control storm de Broadcast, Multicast Storm Control, Unicast Storm Control, Weighted Random Early detection (WRED), support protocole STP (Spanning Tree Protocol), support protocole RSTP (Rapid Spanning Tree Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), assistance accesss Control List (ACL), Quality of Service (QDS), support RDMA, support LLDP, Link Aggregation Control Protocol (LACP), Class of Service (CoS), support DiffServ Code Point (DSCP)
- Capacity
- - Interfaces virtuelles (VLAN): 4096
- Routing protocol
- Static IP routing
- Protocole de gestion à distance :
- SNMP 1, SNMP 2, RMON, SNMP 3, SSH-2
- Standards compliance
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
- Included software
- Cisco NX-OS
- Expansion slots
- 18(total) /18 (free) x expansion Slots
- Power supply
- CA 120/230 V (50/60 Hz)
- chassis type
- Rack-mountable - 13U
