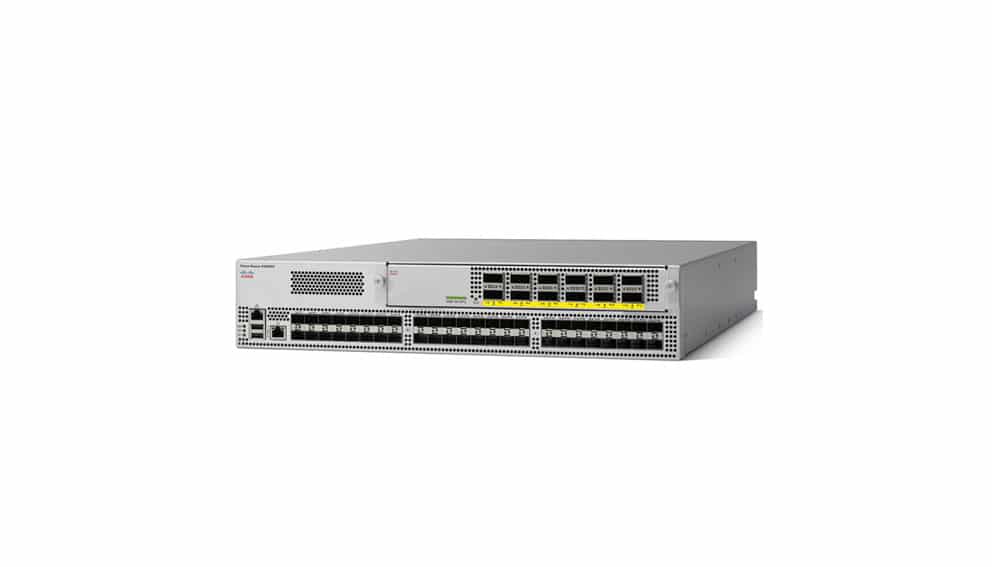

- Cisco Nexus 9396PX - L3 - 48 Ports
- Features
- control flux, Modular design, balancing de charge, support network local (LAN) virtuel, IGMP snooping, support de Syslog, mise en file d'attente Weighted Round Robin (WRR), control storm de Broadcast, Multicast Storm Control, Unicast Storm Control, Weighted Random Early detection (WRED), support protocole STP (Spanning Tree Protocol), support protocole RSTP (Rapid Spanning Tree Protocol), support protocole Multiple Spanning Tree Protocol (MSTP), assistance accesss Control List (ACL), Quality of Service (QDS), support RADIUS, support RDMA, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), support LLDP, relais DHCP, Link Aggregation Control Protocol (LACP), Virtual Routing and Forwarding (VRF), Class of Service (CoS), support DiffServ Code Point (DSCP)
- performance
- - bande passante : 960 Tbps
- Capacity
- - Entries (IPv4) de correspondance de prefixedd le plus long (LPM): 16000
- Entries de table host (IPv4): 88000
- Adresses MAC: 160000
- Routes IPv4 (multicast): 32000
- Interfaces virtuelles (VLAN): 4096
- Voies ECMP (Equal-Cost Multipathing): 64
- Instances Multiple Spanning Tree Protocol: 64
- Instances Rapid Per-VLAN Spanning Tree Plus: 507
- Entries VRF (Routing and transfert virtuel): 1000
- Entries d'observation IGMP: 32000
- Routing protocol
- IS-IS, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, OSPFv3, MSDP, Static routing IPv4, ECMP, Bidirectional Forwarding detection (BFD), VRRPv3
- Protocole de gestion à distance :
- SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
- Ports
- - 12 x LAN 40 GB QSFP+
- 48 x 10GBased-T SFP+
- 2 x USB
- 1 x management (Gigabit LAN) RJ-45
- 1 x series (RS-232) RJ-45
- Standards compliance
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 801.1p, IEEE 802.1ab (LLDP), IEEE 802.3ba
- Included software
- Cisco NX-OS
- Expansion slots
- 0 (total) / 0 (free) x expansion Slots
- Power supply
- CA 120/230 V (50/60 Hz)
- chassis type
- Rack-mountable - 2U
