- Product

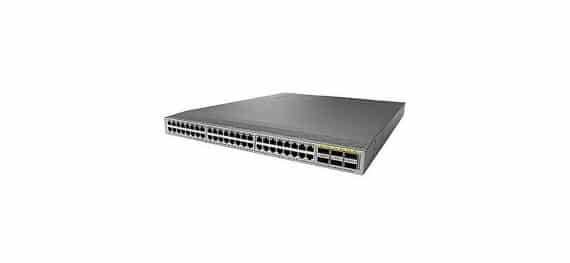

- Cisco Nexus 9372TX-E - L3 - 48 Ports
- Features
- support network local (LAN) virtuel, IGMP snooping, support protocole Multiple Spanning Tree Protocol (MSTP), assistance accesss Control List (ACL), Quality of Service (QDS), Per-VLAN Rapid Spanning Tree (PVRST), support protocole HSRP (Hot Standby Router Protocol), Virtual Routing and Forwarding (VRF), technologie Virtual PortChannel (vPC), support VTEP (VXLAN tunnel endpoints)
- Capacity
- - Entries (IPv4) de correspondance de prefixedd le plus long (LPM): 16000
- Entries de table host (IPv4): 208000
- Routes IPv4 (multicast): 32000
- Interfaces virtuelles (VLAN): 4096
- Voies ECMP (Equal-Cost Multipathing): 64
- Instances Multiple Spanning Tree Protocol: 64
- Instances Rapid Per-VLAN Spanning Tree Plus: 507
- Entries VRF (Routing and transfert virtuel): 1000
- Entries d'observation IGMP: 32000
- Entries ACL (entries): 4000
- Entries ACL (output): 1000
- performance
- Bande passante : 1.44 Tbps
- Protocole de gestion à distance :
- SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
- Ports
- - 6 x 40Gbit LAN QSFP+
- 48 x 10GBased-T RJ-45 downlink
- 2 x USB
- 1 x management (Gigabit LAN) RJ-45
- 1 x serial (RS-232) RJ-45
- RAM
- 16 GB
- Processseur
- 2.5 GHz
- Standards compliance
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
- Included software
- Cisco NX-OS
- Expansion slots
- 0 (total) / 0 (free) x expansion Slots
- Power supply
- CA 120/230 V (50/60 Hz)
- chassis type
- Rack-mountable - 1U
