- Product

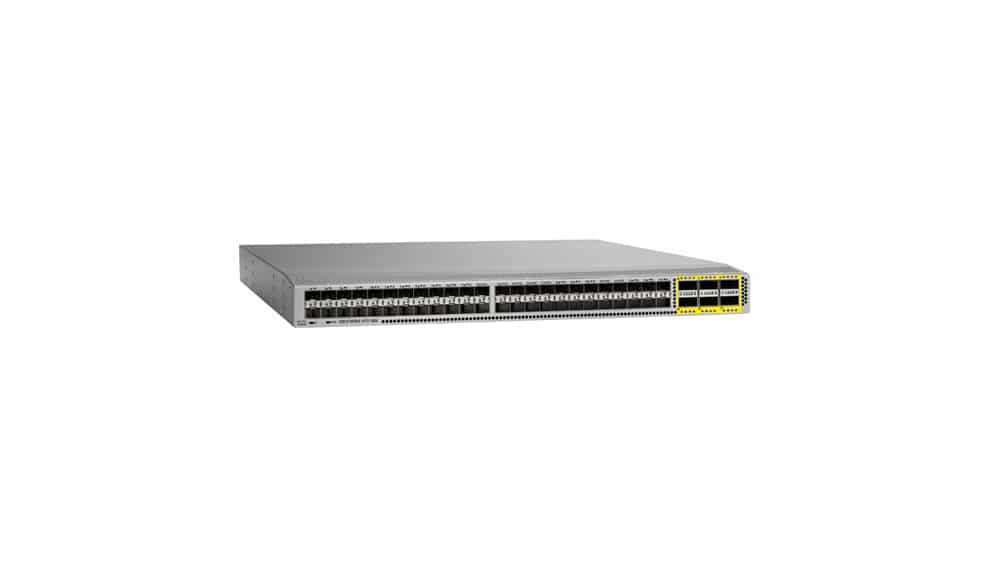

- Cisco Nexus 3172PQ - L3 - 48 Ports
- performance
- Switching capacity: 1.4 Tbps
- performance
- - Interfaces virtuelles (VLAN): 4096
- Instances Multiple Spanning Tree Protocol: 64
- Instances Rapid Spanning Tree Protocol: 512
- Adresses MAC: 288000
- Files d'attente hardware QoS per port: 8
- Entries ACL (output): 1000
- Entries ACL (entries): 4000
- MAC address table size
- 128000 entries
- Protocole de gestion à distance :
- SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
- Routing protocol
- RIP-2, BGP, EIGRP, HSRP, VRRP, OSPFv2, PIM-SM, GRE, OSPFv3, PIM-SSM, MSDP, Static routing IPv4, Static routing IPv6, ECMP, Policy-basedd routing (PBR), BGP for IPv6
- Ports
- - 6 x QSFP+
- 48 x 10GBased-T RJ-45
- 1 x 1000Based-T RJ-45 management
- 1 x series (RS-232)
- 1 x USB
- RAM
- 8 GO
- Standards compliance
- IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP)
- Included software
- Cisco NX-OS
- Power supply
- CA 120/230 V (50/60 Hz)
- chassis type
- Rack-mountable - 1U
