- Product

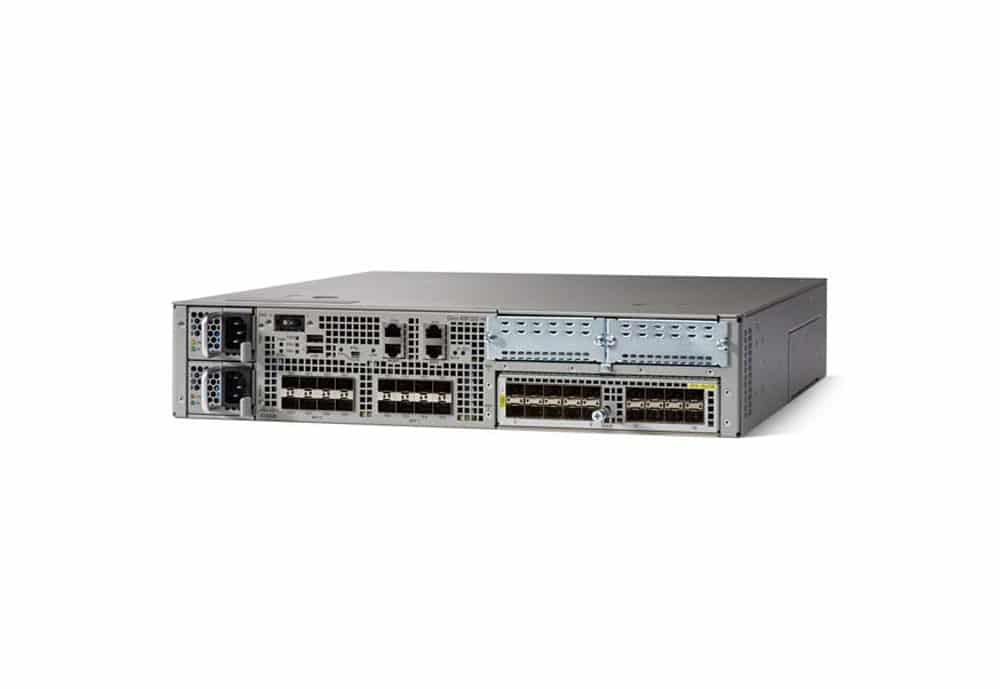

- Cisco ASR 1002-HX chassis
- Caractéristique
- NAT support, Deep Packet Inspection (DPI), accesss Control List (ACL) support, Quality of Service (QoS), front to back airflow, NetFlow, DiffServ Code Point (DSCP) support, In-Service Software Upgrade (ISSU)
- performance
- -Bande Passante 100 Gbps
-Throughput : up to 25 Gbps
- IPSec tunnels: 8000
- Standard
- CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN55022, IEC 61000-4-11, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EN50082-1, EN 61000-6-1, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 60950-1, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, VCCI Class A, AS/NZS CISPR 22, FCC CFR47 Part 15 A, CNS 13438 Class A, EN 300386
- Ports
- - 8 x 1000Based-X - SFP (mini-GBIC)
- 8 x 10GBased-X - SFP+
- Management: 1 x 10Based-T/100Based-TX/1000Based-T - RJ-45
- Management: 1 x console - RJ-45
- Management: 1 x auxiliary - RJ-45
- USB: 2 x 4 pin USB Type A
- USB: 1 x console
- RAM
- 16 GB (installedd) / 16 GB (maximum)
- Expansion slots
- 1 (total) / 1 (free) x Logement for extension
- Power supply
- 500 Watt
- Included software
- IOS XE
- chassis type
- Rack-mountable 2U
